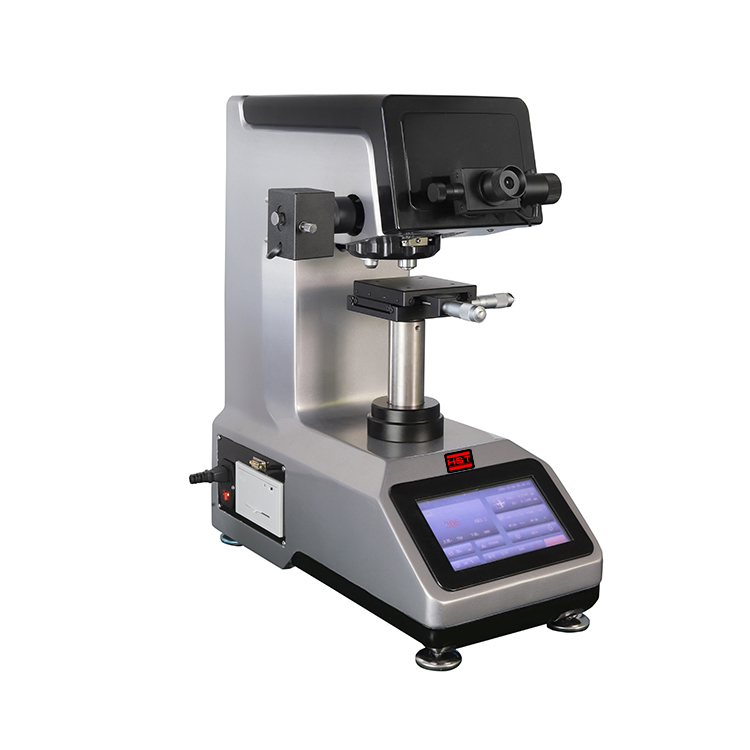

HVS-1000ZT Touch Screen Automatic Turret Digital Display Micro Vickers Hardness Tester
HVS-1000ZT Touch Screen Automatic Turret Digital Display Micro Vickers Hardness Tester
Standards:
Request A Quote Files Download
I. Scope of Applocation：
HVS-1000ZT Touch screen automatic turret digital display microVickers Hardness Tester It is mainly used for the measurement of the micro Vickers hardness of various metals and some non-metal materials. It can test various parts (machined parts, forgings, cast iron, steel castings, etc.), non-ferrous metals, thermal after-treatment parts, and various micro And thin parts, glass, ceramics, agate, gemstones, etc. for hardness measurement, at the same time suitable for carbonization, quenching and hardening layer effective depth, coating, surface coating and welding parts heat-affected part measurement. It can also be used to observe the internal Metallographic structure of various metal parts and to collect, display and output the image.
It is especially suitable for measuring the hardness gradient distribution curve of the workpiece and the surface hardness of the gear after heat treatment, and the effective hardening layer depth.
I. Technical Parameter：
HVS-1000ZT Touch screen automatic turret digital display microVickers Hardness Tester It is mainly used for the measurement of the micro Vickers hardness of various metals and some non-metal materials. It can test various parts (machined parts, forgings, cast iron, steel castings, etc.), non-ferrous metals, thermal after-treatment parts, and various micro And thin parts, glass, ceramics, agate, gemstones, etc. for hardness measurement, at the same time suitable for carbonization, quenching and hardening layer effective depth, coating, surface coating and welding parts heat-affected part measurement. It can also be used to observe the internal Metallographic structure of various metal parts and to collect, display and output the image.
It is especially suitable for measuring the hardness gradient distribution curve of the workpiece and the surface hardness of the gear after heat treatment, and the effective hardening layer depth.
I. Technical Parameter：
| Model | HVS-1000ZT |
| Test force | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
| Min.test unit | 0.025µm Electronic measuring eyepiece |
|
Exchange Scales |
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
|
Measuring range |
5~3000HV |
| Test force application method | Automatic (loading, loading and unloading) |
| Test Microscope magnification | 100X (Observation) 400X(test) |
| Test power and load retention time | 1~60s |
| X-Y Test table | Size：100*100mm Maximum movement：25*25mm |
| Data output | LCD display readout, built-in printer and RS-232 interface |
|
Max Height of Specimen |
110mm |
