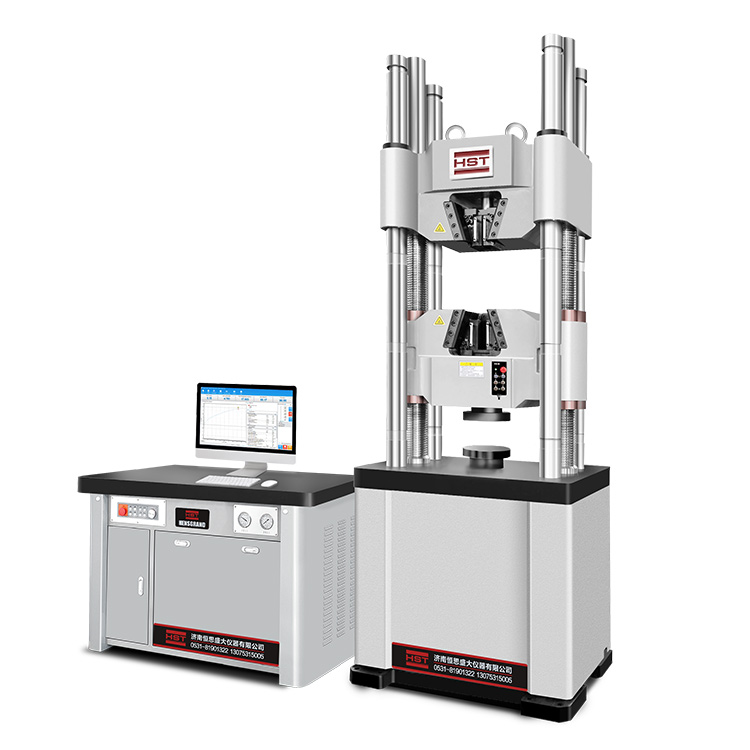

WAW-1000D 1000KN 100Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine
Application
Steel Rebar Hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.
Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications
Model |
HST WAW-1000E |
Structure |
6 Column |
Max. Load(KN) |
1000 |
Load Accuracy |
≤± 0.5% |
Load Range |
0.4%~100% |
Displacement Resolution |
0.01mm |
Max. Tension Test Space(mm) |
950 |
Max.Compression Test Space(mm) |
700 |
Column Effective Spacing(mm) |
560 |
Max. Piston Stroke(mm) |
250 |
Clamping Method |
Hydraulic Clamping |
Round Specimen Clamping Range(mm) |
Φ6-Φ13,Φ13-Φ26,Φ26-Φ45 |
Flat Specimen Clamping Range(mm) |
0-20,20-40 |
Flat Specimen Clamping Width(mm) |
100*100 |
Power Supply |
3-phase,AC380V, 50Hz (Can Be Customized) |
