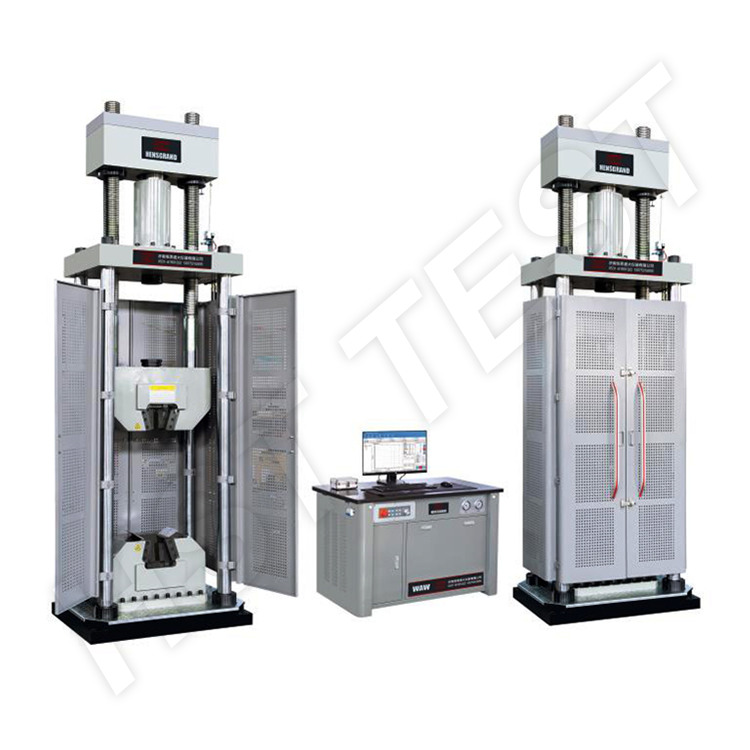

WAW-1000A/1500A/2000A Top Cylinder Servo-hydraulic Universal Testing System
1.Introduction Application
WAW-1000A/1500A/2000A Hydraulic Universal Testing Machine is ideal for high-capacity tension,compression, bend/flex, and shear testing.It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.These frames feature dual spaces so users can quickly change between tension and compression testingwithout having to remove heavy fixtures.
2.Technical Specifications
| Model | WAW-1000A | WAW-1500A | WAW-2000A |
| Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||
| Max. Load(kN) | 1000 | 1500 | 2000 |
| Load accuracy | Class 1 | ||
| Load range | 2%～100%F·S | ||
| Load resolution | Capacity/300, 000 (fully auto scaling of single measurement | ||
| Deformation Measurement Range |
2%~100%FS |
||
| Stroke | 250mm | ||
| Test speed(mm/min) | 0-80 | ||
|
Max. Tension Test Space (mm) |
1400 | 1400 | 1000 |
| Compression space | 1200 | 1200 | 800 |
| Nominal maximum specimen sizes Diamater(mm) |
Φ13-26,Φ26-45, Φ45-60 |
Φ13-26,Φ26-45, Φ45-60 |
Φ20~Φ50, Φ50~Φ80, Φ80~Φ110 |
