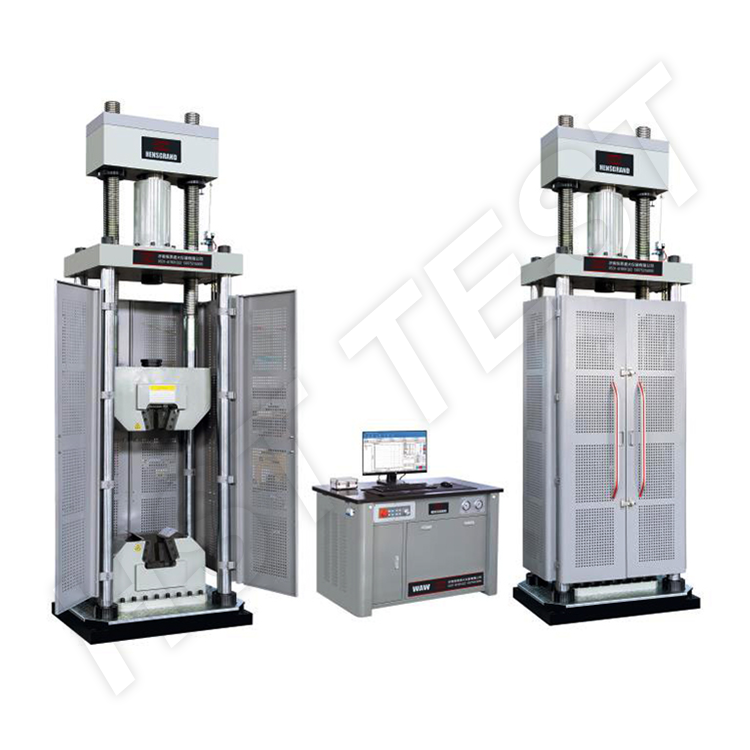

WAW-3000A/4000A/5000A Microcomputer Control Strain Stress Controlled Hydraulic Universal Testing Machine
WAW-3000A/4000A/5000A Hydraulic Universal Testing Machine is ideal for high-capacity tension,
compression, bend/flex, and shear testing.
It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.
These frames feature dual spaces so users can quickly change between tension and compression testing
without having to remove heavy fixtures.
2.Application
Metals-(wire, rod, tube,strip, plate, strip)
Fasteners (tensile, proof,single and double shear)
Construction materials(reinforcement bar, wire,mesh, folding,compression of concrete and components)
Nonmetal materials , and more
3.Technical Specifications
| Model | WAW-3000A | WAW-4000A | WAW-5000A |
| Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||
| Max. Load(kN) | 3000 | 4000 | 5000 |
| Load accuracy | Class 1 | ||
| Load range | 2%～100%F·S | ||
| Load resolution | Capacity/300, 000 (fully auto scaling of single measurement | ||
| Deformation Measurement Range |
2%~100%FS |
||
| Stroke | 250mm | 300mm | 300mm |
| Test speed(mm/min) | 0-80 | ||
|
Max. Tension Test Space (mm) |
800 | 1000 | 1000 |
| Nominal maximum specimen sizes Diamater(mm) | Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 | Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 | Φ20~Φ50,Φ50~Φ80, Φ80~Φ110 |
| Nominal maximum specimen sizes Thickness(mm) | 5~50, 50~100 | 5~50, 50~100 | 5~50, 50~100 |
|
Column Effective Spacing(mm) |
600 | 800 | 800 |
