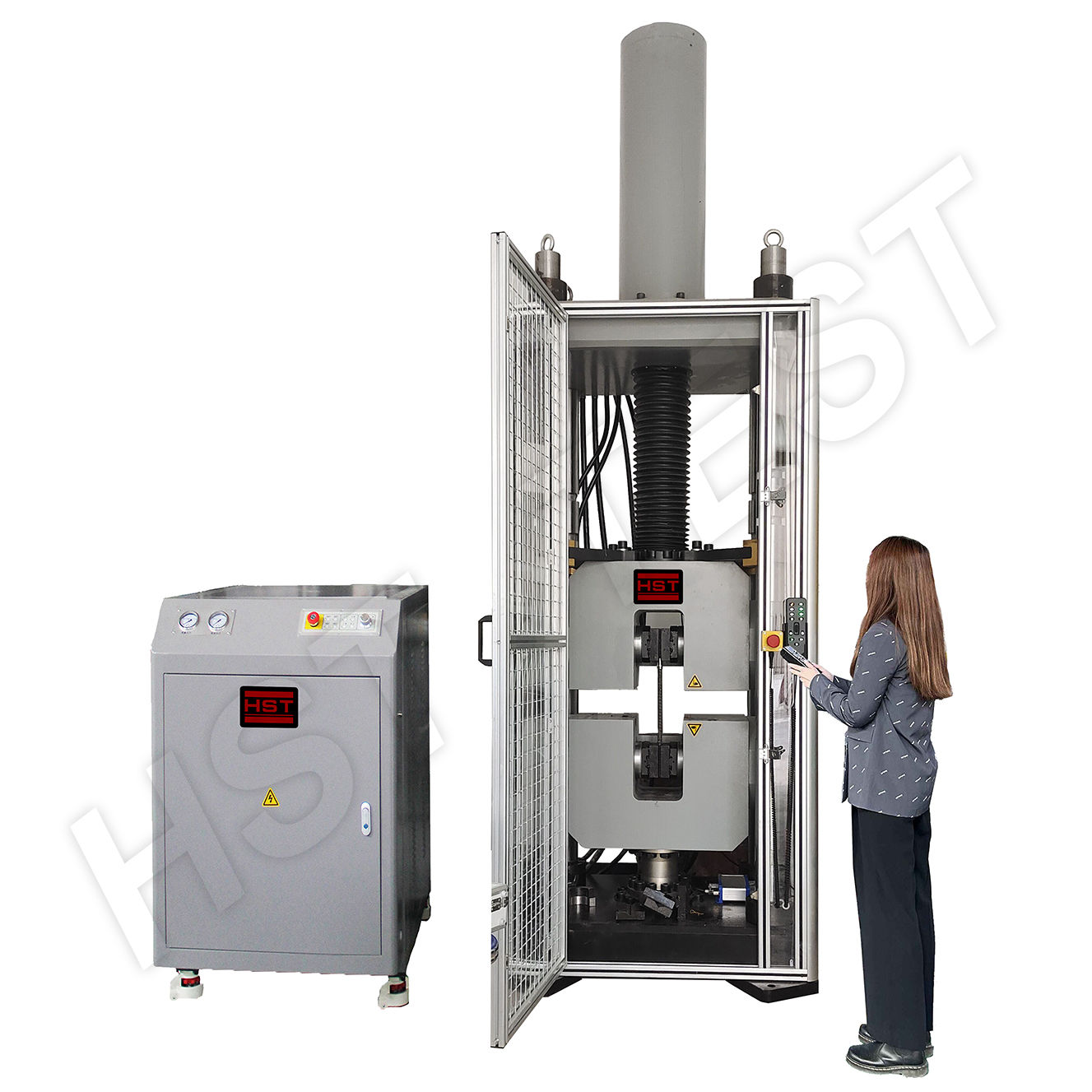

WAW-Q Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
Standards
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
MODEL
WAW-2000Q
WAW-3000Q
Max. Load capacity(kN)
2000
3000
Structure
Four column
Accuracy of testing load(%)
±0.5
Accuracy of deformation(%)
±0.5
Test Range
1%-100%
Deformation measurement range
1%-100%
Posion rising speed(mm/min)
0-100
0-100
Piston descending speed(mm/min)
0-100
0-100
Test Force Loading Rate Range
0.02%-2%FS/s
Max. Tensile space(mm)
700
800
Max. Compression space(mm)
650
520
Actuator stroke(mm)
700
800
Max. Loading speed(mm/min)
50
100
Distance between columns(mm)
810x490
900x540
Clamping method
Hydraulic Automatic Clamp With Wedge Grip
Round insert(mm)
Ф15-Ф40; Ф40-Ф70
Ф15-Ф40; Ф40-Ф70
Flat insert(mm)
10-40;40-70
10-70
Compression platens(mm)
240*240
240*240
Dimensions of load frame(mm)
1505x1186x4178
1505x1186x4178
Weight(kg)
8500
11500
