1.Application:

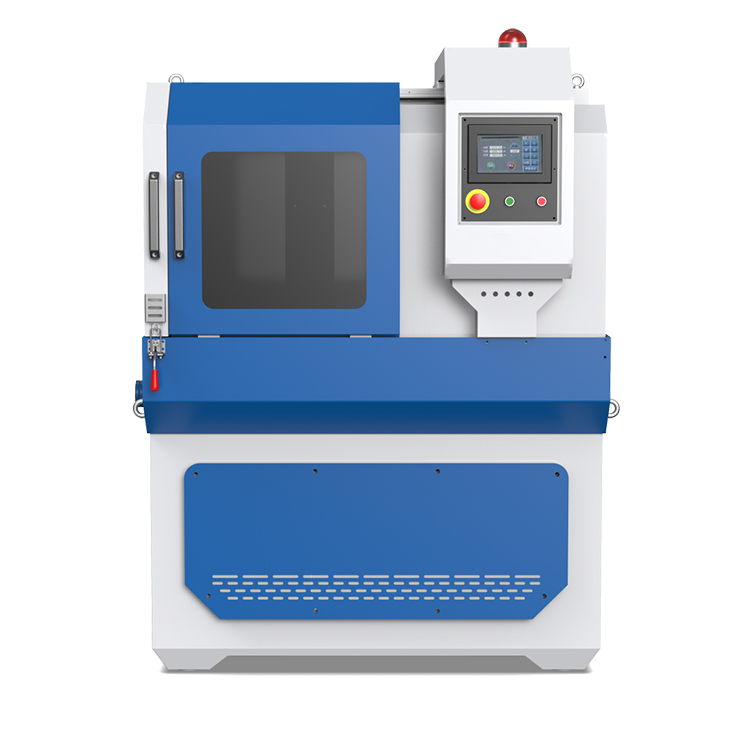

HST-LDQ110Z Manual And Automatic Metallographic Specimen Cutting Machine is designed and manufactured according to an introduced and advanced technology of cutting actions, the health and safety of European Economic Community standard.
This machine includes cutting system, lighting system, cooling system and cleaning system.
Super cooling system can avoid specimen from burning while cutting. Imported gate style safety switch and explosion proof hood afford the safe guarantee for operators.
HST-LDQ110Z applies extensively with manual or automatic cutting features.
It combines new cutting technology, high ability and convenience in one. It is the ideal option for colleges, car manufacturing, steel manufactories, material research institutes and so on.
2.Technical Parameters:
Model |
HST-LDQ110Z |
Structure |
Floor |
Shell material |
Steel |
Cutting method |
Manual/Automatic |
Max. Cutting Diameter |
110mm |
Move Capacity Of Y-axis |
240mm |
Cutting Speed |
Can Adjustable Between 0.1-5mm/s |
Rotating speed |
2800r/min |
Abrasive Wheel |
350×2.5×32mm |
Power Supply |
Three Phases, 380V, 50Hz, 4 KW |
Dimension |
1060×1450×1650(mm) |
Weight |
800.00 KG |
