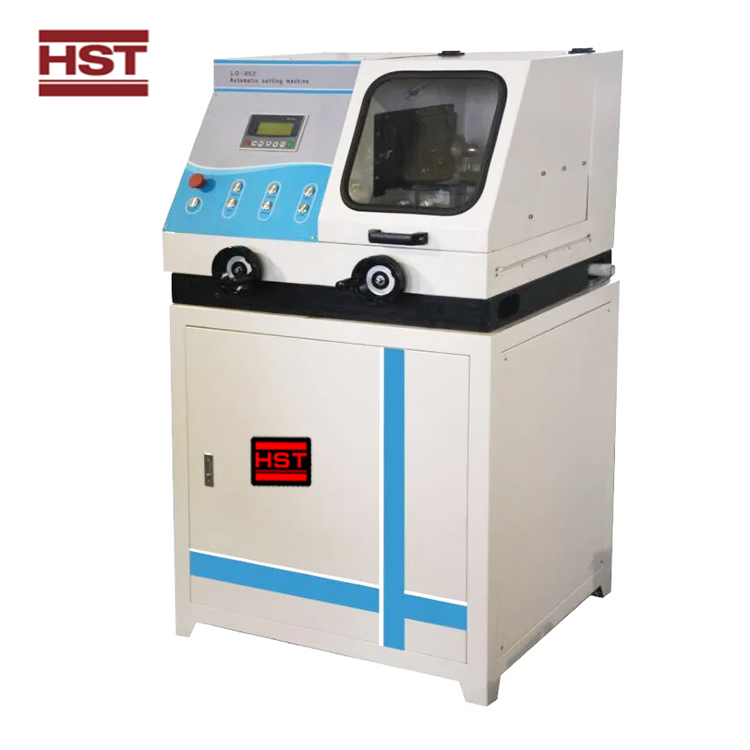

HST-Q80ZF Automatic Metallographic Cutting Machine
Introduction：Model HST-Q80ZF manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutt
Standards:
Request A Quote Files Download
Introduction：
Model HST-Q80ZF manual / automatic Metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen. Manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means which improved the cutting quality Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting.
Parameters:
|
Model |
HST-Q80ZF |
|
Display |
High-resolution backlit dot matrix LCD display |
|
Cutting disc speed (grinding wheel speed) |
2100rpm |
|
Maximum cutting diameter |
80mm |
|
Cutting disc specifications |
350 X2.5 X32mm |
|
Maximum moving range |
125mm |
|
Maximum mobile range of desktop |
275mm |
|
Voltage |
380V, 50Hz |
|
Motor |
2.5kw |
|
Weight |
75kg |
