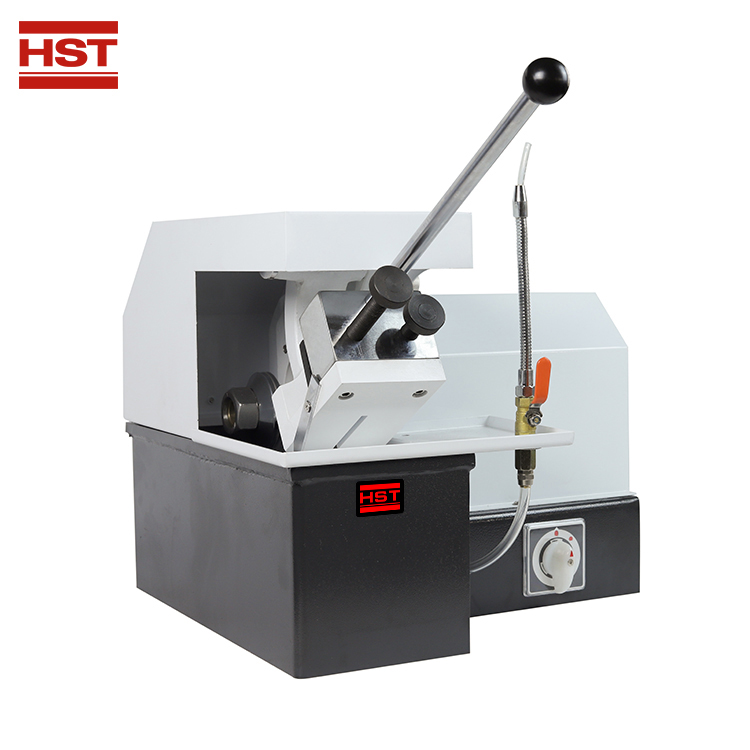

HST-Q2A Metallographic Specimen Cutting Machine
Application：The HST-Q2A metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic st
Standards:
Request A Quote Files DownloadApplication：
The HST-Q2A metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the Metallographic and petrographic structures of the materials.
Features:
● This machine is equipped with a cooling system to take away the heat generated during cutting.
● The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
● The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
● The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
Parameters:
|
Model |
HST-Q2A |
|
Maximum cutting section |
φ50mm |
|
Spindle speed |
2800 r/min |
|
Cutting power |
2.2kw |
|
Input voltage |
3-phase 380V、50HZ |
|
Grinding wheel specifications |
300*2*32mm |
|
Dimensions |
469*455*396mm |
|
Package Size |
615*516*538mm |
|
net weight |
66.55kg |
|
gross weight |
77.25kg |
