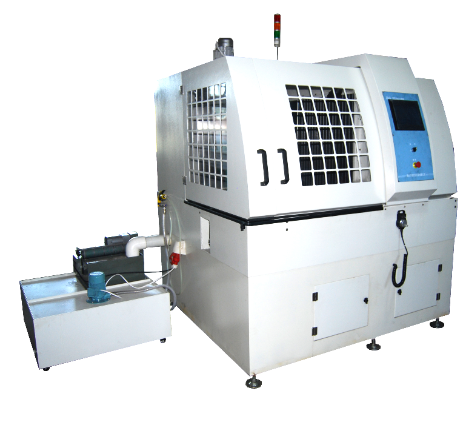

HST-LDQ170Z Automatic Metallographic Specimen Cutting Machine
OverviewThis machine is a metallographic specimen cutting machine automatically controlled by PLC, with precise control in the X, Y, and Z directions. Intelligent cutting can change the feed rate acco
Standards:
Request A Quote Files Download
Overview
This machine is a Metallographic specimen cutting machine automatically controlled by PLC, with precise control in the X, Y, and Z directions. Intelligent cutting can change the feed rate according to the material hardness to achieve the fastest cutting effect. The cutting speed is controlled by frequency conversion, which has high reliability and control ability.
Main technical parameters
|
Manual/automatic can be selected by oneself |
Three axis linkage, 10 inch industrial touch screen control |
|
Grinding wheel diameter |
Ø500X3.5XØ32 |
|
Cutting feed speed |
0-15 millimeters per minute (users can modify the set speed as needed) |
|
Workbench dimensions |
550x650 mm (mm) (x * y) |
|
Maximum Y-axis travel distance |
400 mm |
|
Maximum Z-axis travel distance |
250 mm |
|
Maximum travel distance of X-axis |
260mm |
|
Maximum cutting diameter |
170mm |
|
Cooling water tank capacity |
120L |
|
Variable Frequency Motor |
11kw, Rotational speed; 100-3000r/min, power supply; 380V,50HZ |
|
Overall dimensions |
2000mm x 1480mm x 2200mm |
|
Body form |
vertical |
|
weight |
About2200kg |
|
power supply |
Three phase five wire 380V 50HZ: A, B, C, N |
