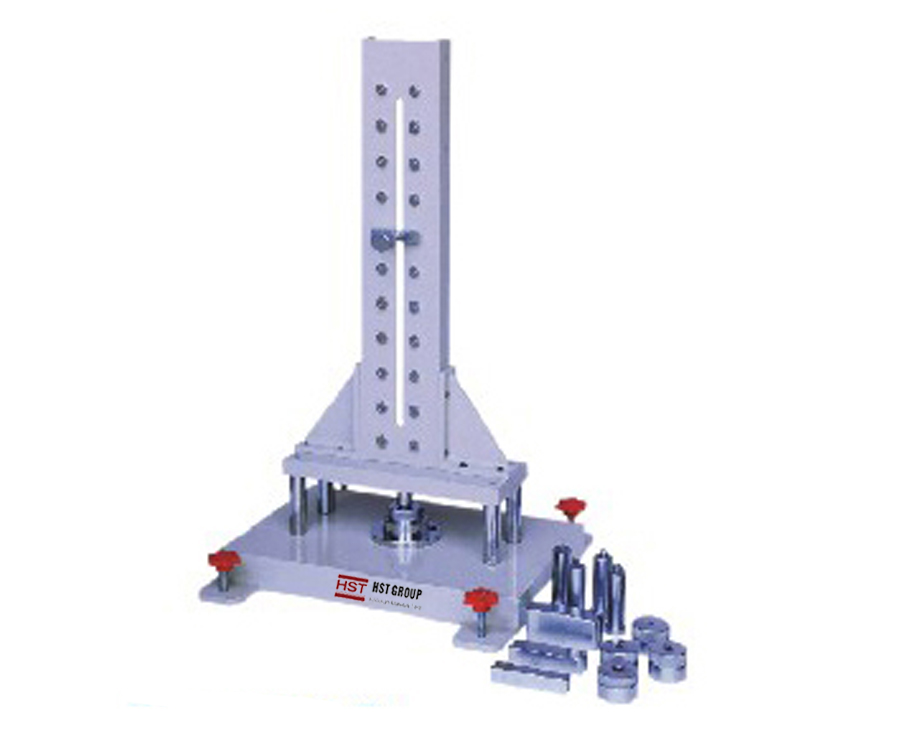

Dupont Impact Tester
Dupont Impact Tester Product Description
Dupont Impact Tester is used for testing the firm degree of the plastic, ceramic, acrylic, glass fiber materials and coating material.
Principle
Dupont impact testing machine to be provisioned of the weight of the steel ball, adjust a certain height, drop feely and attack samples, observe the degree of damage.
Dupont impact testing machine meets the design criteria:JIS-K5600(coating),ASTM-D2794 Standard Test Method for Resistance of Organic Coatings to the Effects of Rapid Deformation (Impact),
JIS-K5400 (withdrawn)testing methods for paints errata-april 1994; errata-july 1994; errata-october 1994 and so on.
|
Item |
Specification |
|
|
General material |
Coating specimens |
Plastic specimens |
|
Max height |
50~500mm |
50~1000mm |
|
Balls control method |
Manual setting |
|
|
Impact head radius |
1/2,1/4,3/16,1/8,1/16in,5mm |
7.9mmR(5/16”R) |
|
Impact platform radius |
Plane 1/4,3/16,1/8,1/16in |
8.1mmR, 15mmR |
|
Weight |
300,500,1000g one in each |
1000g,2000g in each |
|
Volume(about) |
50cm×50cm×150cm |
|
