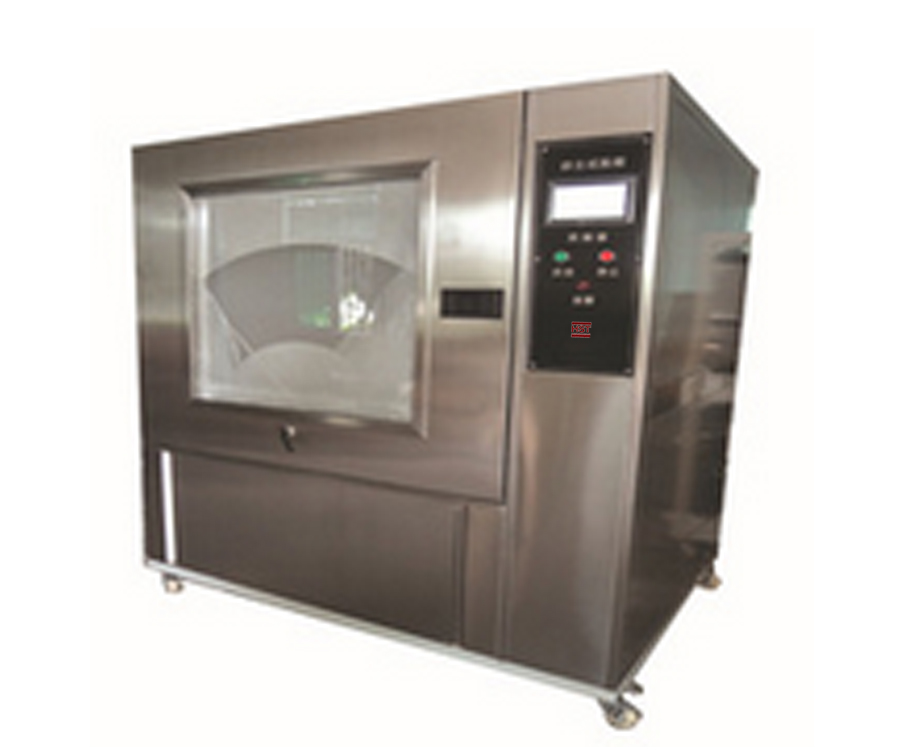

Sand and Dust Test Chamber
Product description
The sand dust test chamber is designed to test outer covering sealing performance of a product,mainly used in IP5X and IP6X stipulated in standard for protective outer covering. It simulates the damages caused by dusty weather to such products as locks, auto parts, seals, power meter, etc. (Sizes to fit customer requirements)
Standards: GJB150.1-86,GB4208-93,GB2423.37-89,GJB150.12,GB10485
Specifications
|
Type |
NHS500 |
NHS800 |
NHS1000 |
NHS1500 |
NHS2500 |
|
|
Working camber size D*W*H |
80*80*80 |
80*100*100 |
100*100*100 |
100*150*100 |
120*180*120 |
|
|
Performance indicators |
Metal wire diameter |
50um |
||||
|
nominal spacing between lines |
75um |
|||||
|
Talcum powder dosage |
2kg~4kg/m3 |
|||||
|
Resisting time |
0~99H59M |
|||||
|
Operation control system |
cycling time of fan |
0~99H59M |
||||
|
Power outlet for test sample |
Dustproof outlet AC220V 16A |
|||||
|
Controller |
imported programmable microcomputer integrated controller(MOELLER) |
|||||
|
Vacuum system |
press, air filter, pressure regulator, connection tube. |
|||||
|
Circulating fan |
hermetic alloy low-noise motor,with centrifugal multi-leaf fan |
|||||
|
Dust heating system |
Stainless steel mica heating plate |
|||||
