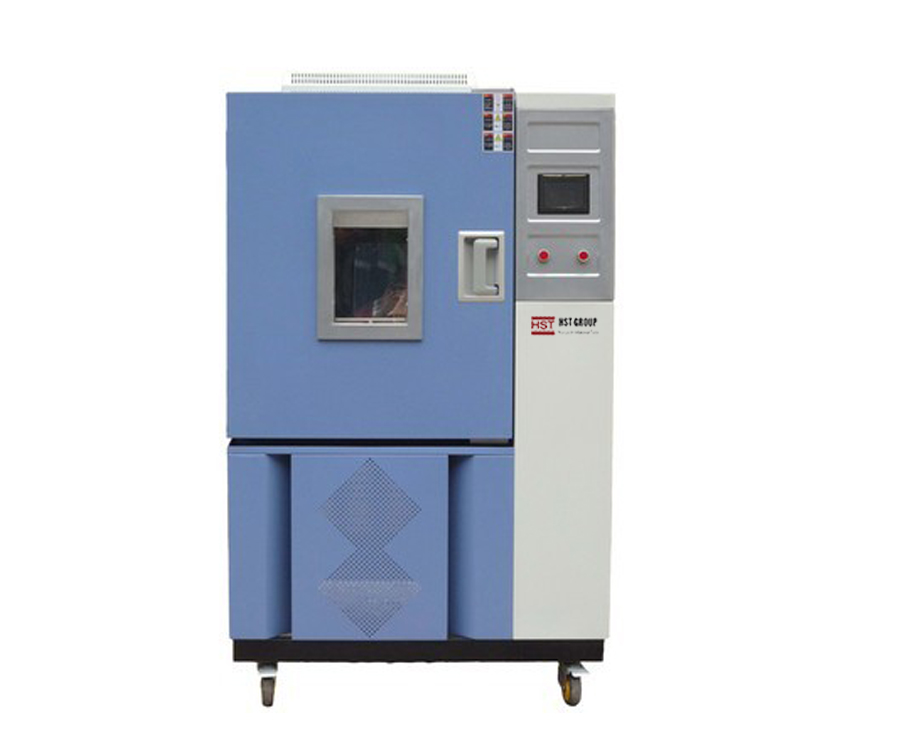

Ozone Aging Test Chamber
Product description
1. The ozone aging cabinet measurer is applicable to test rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation jacket, etc.2. Exposed to a airtight constant-humility testing chamber filled with air of static tensile deformation, samples will be tested to a scheduled time until cracks appear on its surface or other property changes to define the ozone resistance of rubber.
(Sizes customized)
Standards met: JIS K 6259,ASTM1149,ISO1431, GB/T7762,GB/T13642
Parameters
|
type |
NFC100 |
NHC225 |
NHC500 |
NHC010 |
|
|
Working camber size D*W*H |
450*450*500 |
500*600*750 |
700*800*900 |
1000*1000*1000 |
|
|
Performance indicators |
Temperature range |
0~70℃ |
|||
|
Humidity range |
≥65R.H |
||||
|
Ozone concentration |
0~300PPm |
||||
|
Temperature fluctuation |
±0.5℃ |
||||
|
Operation control system |
Test device |
Dynamic and static (optional) |
|||
|
sample holder rotation |
360°rotation sample holder,(1cycle/min) |
||||
|
Gas flow rate |
12~16mm/s |
||||
|
Temperature controller |
Imported LED digital display P,I, D+S, S, R. Microcomputer integrated controller |
||||
|
Time controller |
High-precision controller by hour,minute,second |
||||
|
Ozone concentration analysis |
Imported concentration analysis regulator, 4~60mAoutput,RS232 communication port |
||||
|
Ozone generator |
Silent discharge tube |
||||
|
Security |
Leakage, short circuit, over-temperature, motor overheating, over-current protection |
||||
