Thermal Shock Test Chamber

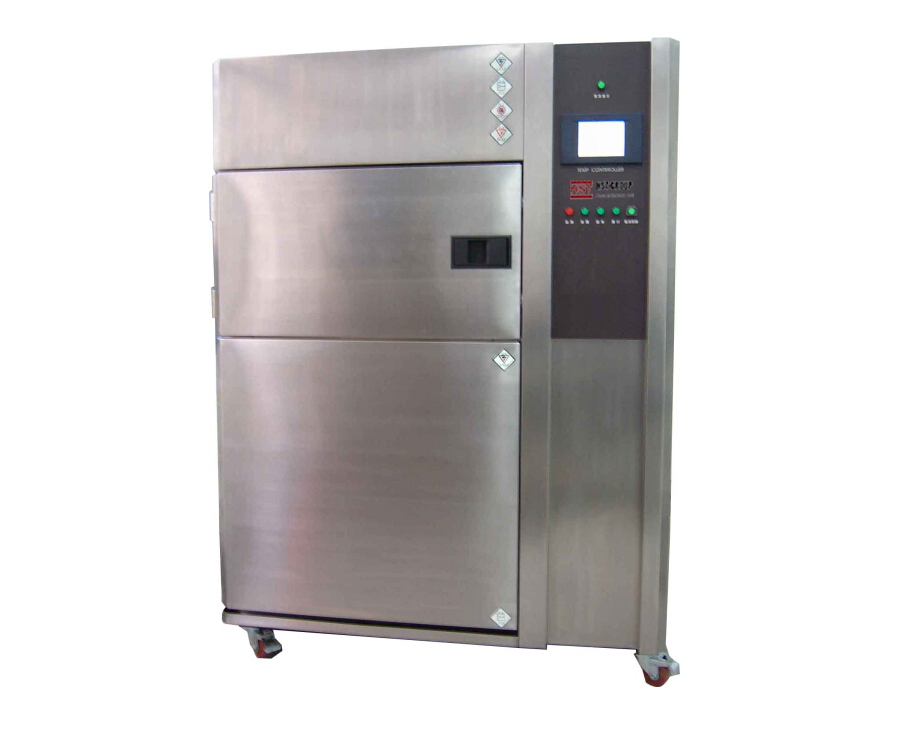

Thermal shock test chamber
Product DescriptionThe rubber thermal shock climatic chamber, indispensable in materials industry such as metal, plastic, rubber, electronics etc, is applicable to test temperature endurance of material structure and composite materials under a rapid shift from extremely high temperature to a extremely low temperature or reverse, so as to find in shortest time the chemical changes or physical damages caused by thermal expansion and contraction.
Standards met: GB/T2423.1.2,GB/T10592-2008,GJB150.3T, etc.
Parameters of the cold hot shock chamber
|
Article No |
Air-cooled/water-cooled |
|||||||||||||||
|
TC50 |
TC80 |
TC120 |
TC150 |
TC225 |
TC408 |
TC800 |
TC1000 |
|||||||||
|
Controller |
Imported LCD touch screen controller(Japan OYO/HONEYWELL) |
|||||||||||||||
|
Working tank temperature range |
-40℃-150℃ |
-55℃-150℃ |
-70℃-150℃ |
|||||||||||||
|
temperature recovery time |
Within 5min |
|||||||||||||||
|
High temperature tank temperature |
60℃-200℃ |
60℃-200℃ |
60℃-200℃ |
|||||||||||||
|
Low temperature tank |
-65℃-10℃ |
-70℃-10℃ |
-80℃-10℃ |
|||||||||||||
|
High and low temperature exposure time |
+150℃30min |
+150℃30min |
+150℃30min |
|||||||||||||
|
-40℃30min |
-55℃30min |
-65℃30min |
||||||||||||||
|
Interior dimension (cm) |
W |
40 |
50 |
60 |
60 |
50 |
60 |
80 |
100 |
|||||||
|
H |
||||||||||||||||
|
D |
||||||||||||||||
|
Interior material |
SUS304 stainless steel |
|||||||||||||||
|
Exterior material |
stainless steel |
|||||||||||||||
|
Power supply |
AC380V±10%50HZ Three-phase four-wire + protective conductor |
|||||||||||||||
