Introduction:

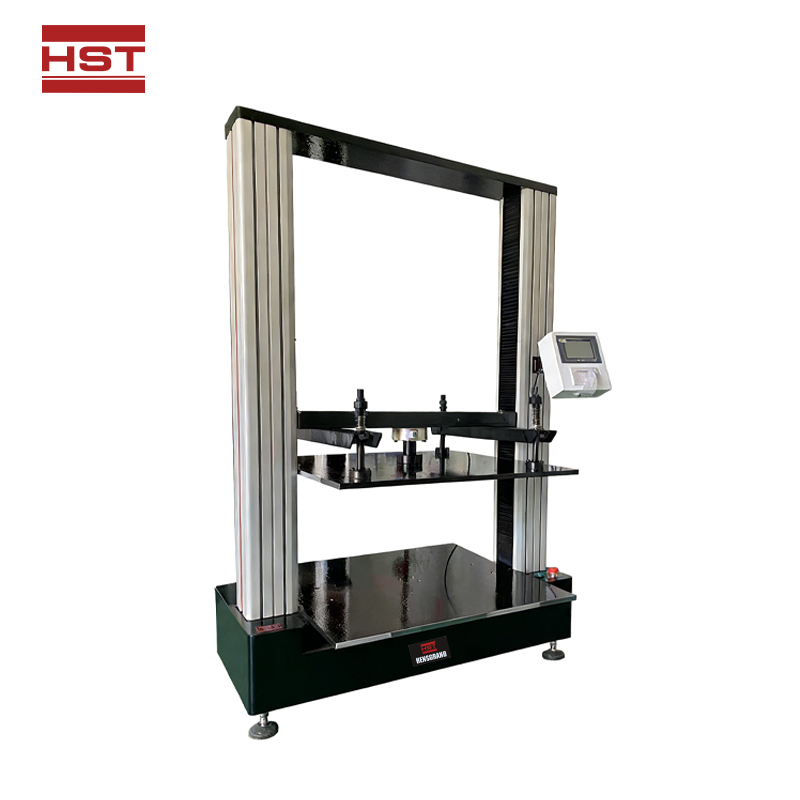

The microcomputer-controlled carton compression tester is a basic instrument for testing the compression strength of small and medium-sized packaging products such as corrugated cartons. It is suitable for testing the compression strength and stacking strength of small and medium-sized corrugated cartons and other packaging products.

Features:

1. Five-inch LCD touchscreen display showing force/time curves, deformation/displacement curves, and deformation/time curves during the test;

2. Microcomputer processing system for automatic measurement, intelligent result judgment, and automatic return during the test;

3. Microcomputer data acquisition and calculation within the pressure range, with a miniature printer printing the test results;

4. Real-time display of compressive strength, deformation, and change curves during the test;

5. Meets three test modes: compressive strength, stacking test, and constant value test;

6. Synchronous motor drive ensures smooth and accurate transmission, resulting in more precise output pressure;

7. Precision threaded screw drive with four guide column systems ensures stable and accurate high-speed transmission of the upper and lower pressure plates;

8. Reset function automatically stops the moving beam and returns it to its original position after sample damage or test completion;

9. Multiple protections including force travel protection, mechanical travel protection, and displacement protection;

10. The instrument can be upgraded with computer control and professional computer software for testing and data analysis.

Standards:

GB/T 4857.3, GB4857.4, ISO2874, ISO2872, etc.

Specification:

Pressure Measurement Range: 0-10KN (customizable)

Pressure Resistance Space Dimensions: 600*600*600mm (customizable)

Accuracy Class: Class 1

Structural Form: Gantry Structure

Resolution: 0.1N

Accuracy: ≤1%

Return Speed: 100mm/min

Deformation Measurement Accuracy: ≤±1mm

Pressure Application Speed Adjustment Range: 5-90mm/min

Displacement Resolution: 0.01mm

Relative Error of Pressure Application Speed: ±3% within the range of (5-90)mm/min

Parallelism of Upper and Lower Pressure Plates: Lower pressure plate fixed, upper pressure plate spherical (automatically adjusted parallelism) ≤1mm

Relative Error of Crossbeam Speed: Within ±1% of the set value

Effective Test Space: 1000*600*1300mm (L*W*H) (Other sizes can be customized)

Instrument weight: 600kg

Standard testing speed: 12mm/min
