Introduction:

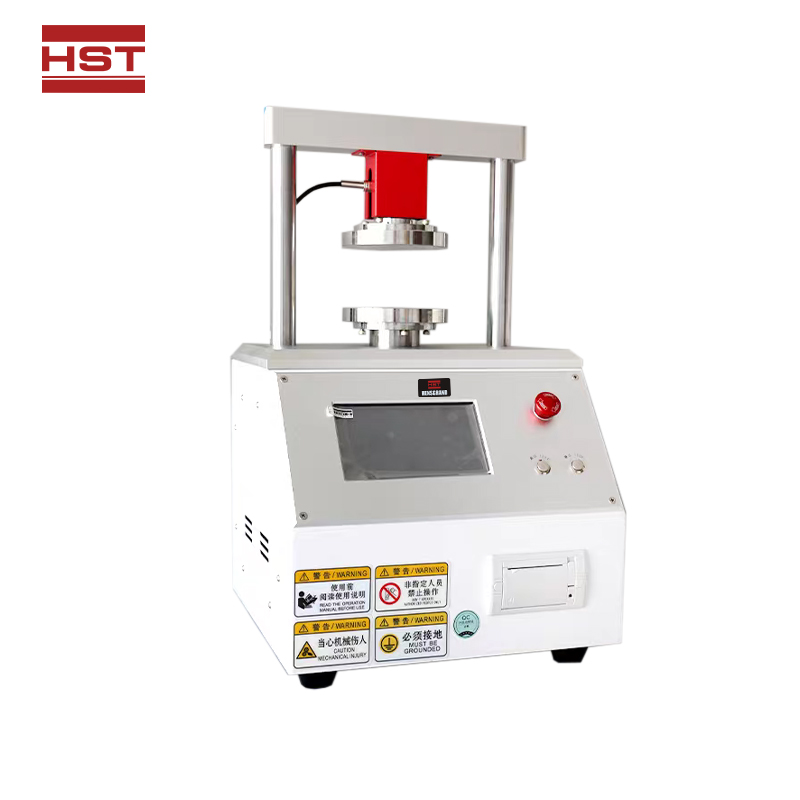

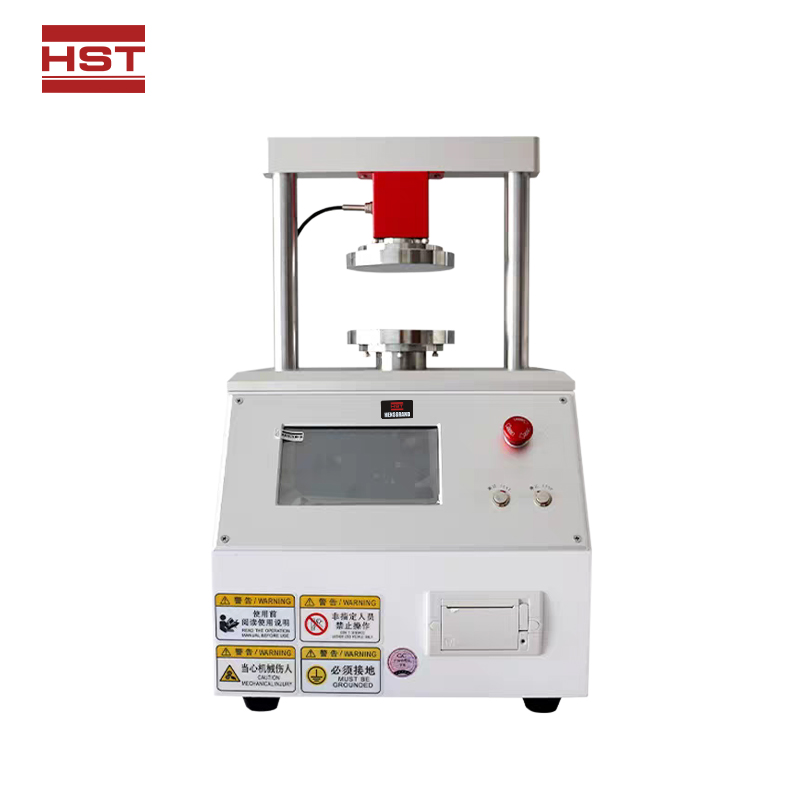

A compression tester is an instrument used to test the ring crush strength (RCT) of paper, the edge crush strength (FCT) of cardboard, the bond strength (PAT) of corrugated board, and the flat crush strength (CMT) of corrugated board. Paper mills typically use it to test the ring crush strength (RCT) of paper with a thickness of 0.15–1.00 mm. Cardboard, carton, and carton users typically use it to test the edge crush strength (ECT), flat crush strength (FCT), bond strength (PAT), and flat crush strength (CMT) of corrugated board cores with a diameter less than 60 mm. This instrument is an ideal auxiliary testing tool for paper mills, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.

Features:

• Industrial-grade 7-inch touchscreen with a menu-driven interface and flat design, eliminating the need for complex operations; one-click access to any interface is sufficient.

• Dedicated single-chip microcomputer control system for paper product compression; simple, fast, stable, reliable, and highly accurate.

• Menu-driven control software; easy to learn and operate.

• Real-time display of experimental data trends throughout the test.

• High-precision motor with lead screw and guide rail structure ensures lifting accuracy and improves test precision.

• Functions include test result saving, querying, and data traceability.

• Uses internationally renowned brand force sensors; high accuracy and stable, reliable performance.

• Overload alarm, travel limit alarm, and shutdown protection functions ensure test safety.

• Equipped with an RJ457 universal data interface for convenient data output and transmission.

• Includes a mini printer for direct printing of test results.

Standards:

Ring Crush: GB/T 2679.8, ISO 12192, TAPPI T822;

Edge Crush: GB/T 6546, ISO3037, TAPPI T811, T839;

Adhesive Crush: GB/T 6548;

Flat Crush: GB/T 22874, ISO 3035, TAPPI T825;

CMT: GB/T 2679.6, ISO 7263-1, TAPPI T809;

CCT: GB/T 40168, ISO16945, TAPPI T843, etc.

Specification
