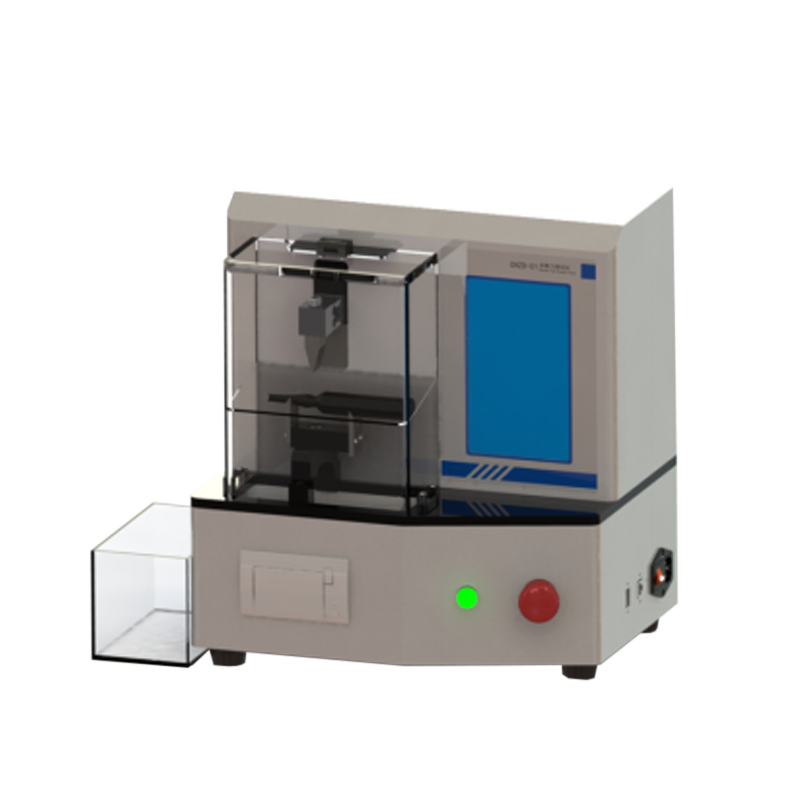

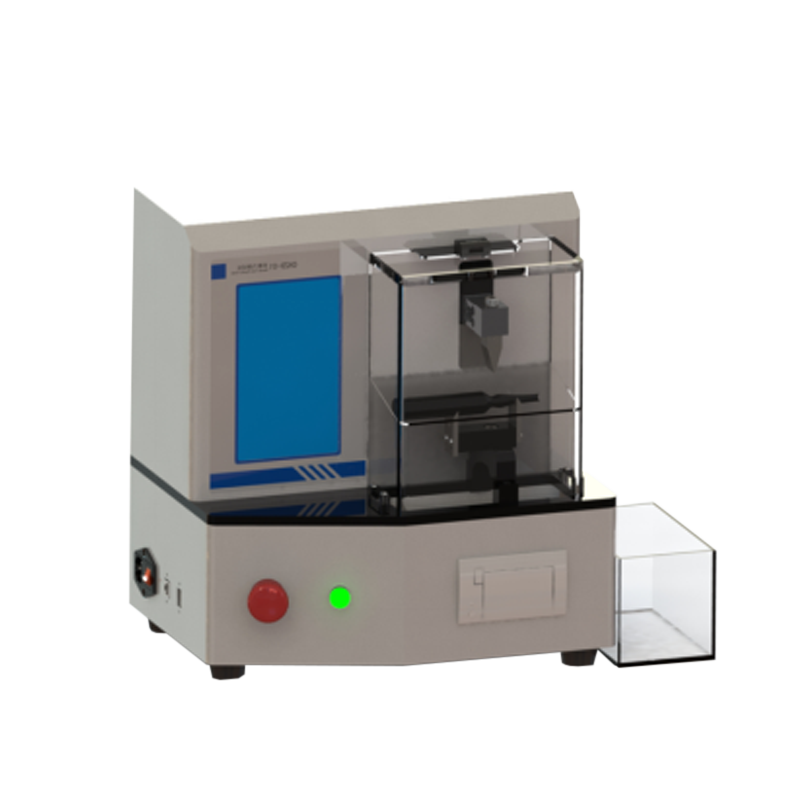

HST-BFT200 Ampoule Breaking Force Tester
The HST-BFT200 Ampoule Breaking Force Tester is suitable for testing the breaking force required to separate the neck from the body of pharmaceutical injection ampoules.
Standards:
GB2637, YBB00332002, YBB 00042012, YBB 00052012, ISO9187.1, and ISO9187.2.
Request A Quote Files DownloadProduct Application:
TheHST-BFT200 Ampoule Breaking Force Tester is suitable for testing the breaking force required to separate the neck from the body of pharmaceutical injection ampoules. It is a commonly used testing device for pharmaceutical companies, ampoule manufacturers, and drug testing institutions, and complies with the testing requirements for breaking force tests of ampoule pharmaceutical packaging as specified in standards such as GB2637, YBB00332002, YBB 00042012, YBB 00052012, ISO9187.1, and ISO9187.2.
Technical Parameters:
|
Specifications |
Specifications |
|
Model |
HST-BFT200 |
|
Sample Type |
Suitable for 1~25mL |
|
Span Specification |
36, 60mm |
|
Force Range |
0～200N |
|
Force Resolution |
0.001N |
|
Force Accuracy |
±0.5% |
|
Standard Test Speed |
10mm/min |
|
Speed Range |
0.1-500mm/min |
|
Speed Accuracy |
±0.5% |
|
Displacement Resolution |
0.001mm |
|
Displacement Accuracy |
±0.5% |
|
Control Method |
Microcomputer controlled, fully automatic testing |
|
Display Method |
8-inch LCD touchscreen |
|
Data Storage |
200 memory entries/USB export |
|
System Language |
Simplified Chinese/English |
|
Data Output Method |
Thermal or dot matrix printers available |
|
Dimensions |
400(L)×300(B)×450(H)mm |
|
Power Supply |
220VAC 50Hz / 110VAC 60Hz |
|
Net Weight |
Approx. 18KG |
|
※ Note: For users with special needs, our company can provide customized production within our capabilities to meet their requirements. |
|
