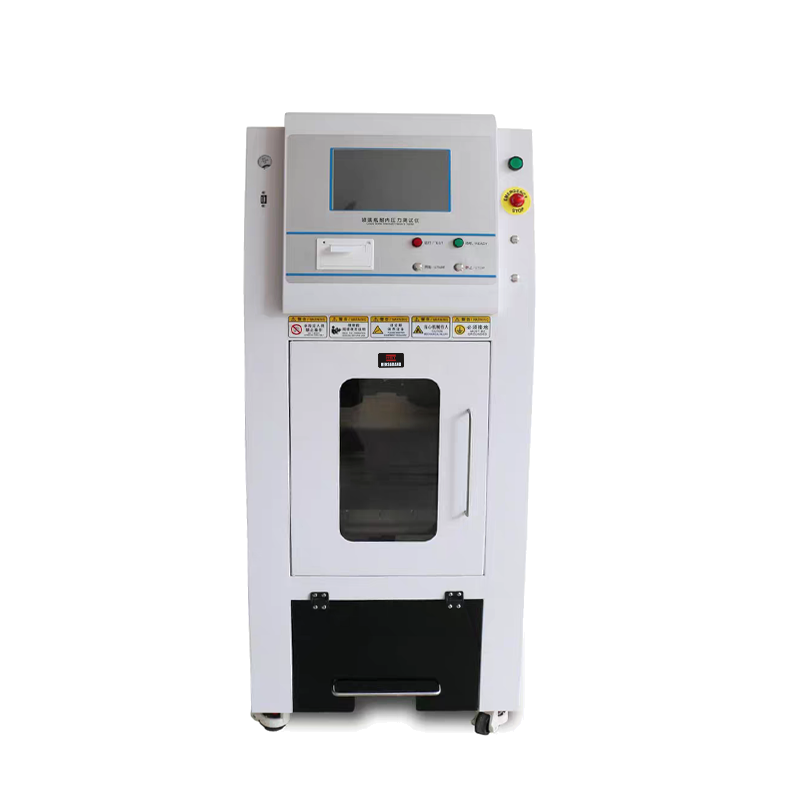

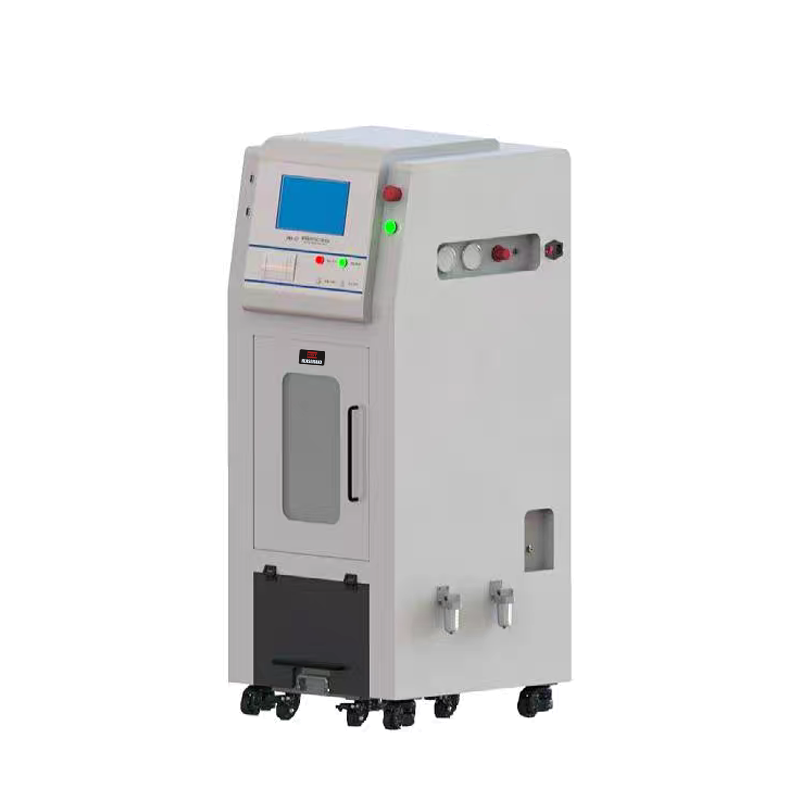

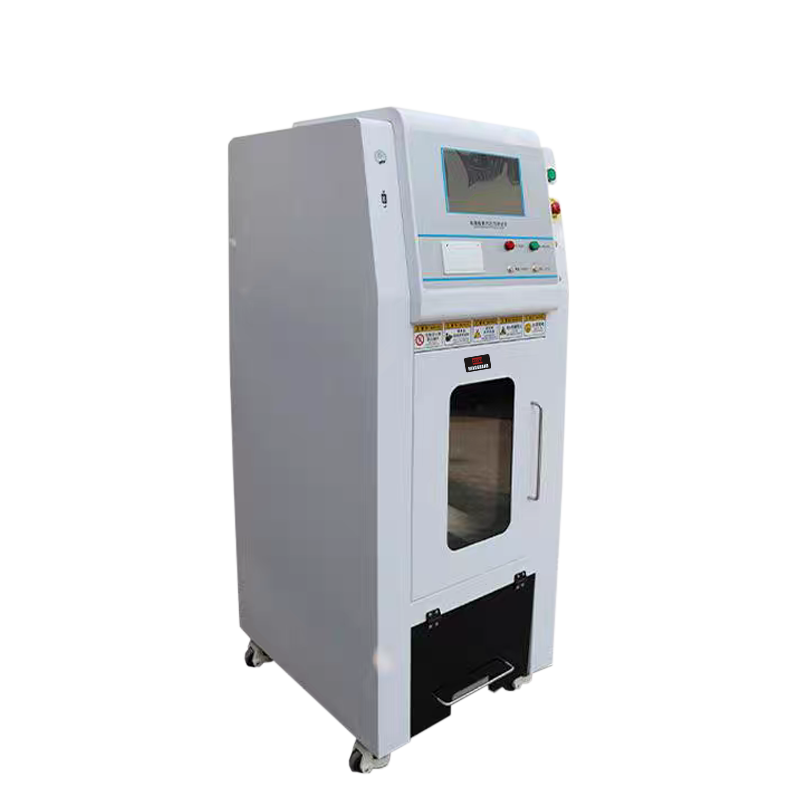

HST-IPTM6 Glass Bottle Internal Pressure Testing Machine
The Glass Bottle Internal Pressure Testing Machine is suitable for testing the internal pressure resistance of various glass bottles, including beer bottles, wine bottles, beverage bottles, infusion b
Standards:
GB/T 4546-2008, YBB00172003-2015, ISO 7458, 2015 National Standard for Pharmaceutical Packaging Materials
Request A Quote Files DownloadProduct Introduction:
The Glass Bottle Internal Pressure Testing Machine is suitable for testing the internal pressure resistance of various glass bottles, including beer bottles, wine bottles, beverage bottles, infusion bottles, and antibiotic vials. The product conforms to the test items specified in GB/T 4546-2008 Glass Containers—Test Method for Internal Pressure Resistance, and also meets the requirements of various standards such as YBB. It automatically displays the pressure changes throughout the entire test process and can meet the requirements for pressure holding tests and burst pressure tests of glass of various capacities. The Glass Bottle Internal Pressure Testing Machine is an essential testing instrument for breweries, glass bottle manufacturers, quality inspection agencies, and pharmaceutical production enterprises.
Standards:
GB/T 4546-2008, YBB00172003-2015, ISO 7458, 2015 National Standard for Pharmaceutical Packaging Materials
Technical Parameters
|
Specifications |
Parameters |
|
Measurement Range |
0.5～6MPa |
|
Pressure Unit |
MPa, bar, PSI, kPa |
|
Resolution |
0.00 |
|
Pressure Test Error |
±0.5% F.S |
|
Pressure Increment Rate |
0.4～0.58±0.1MPa/s; 1.0±0.2 MPa/s |
|
Bottle Neck Clamp Diameter |
Ф24～29mm (Standard configuration, other specifications require customization) |
|
Water Source Requirements |
Continuous water source or water tank |
|
Water Source Connector |
Ф8mm |
|
Air Source Requirements |
0.5-1Mpa clean compressed air |
|
Air Source Connector |
Ф6mm |
|
Dimensions |
600mm (L)×650mm (B)×1450mm (H) |
|
Operating Environment |
Temperature 15℃-50℃; Humidity ≤80% Non-condensing |
|
Power Supply |
220V 50Hz |
|
Weight |
80Kg |
