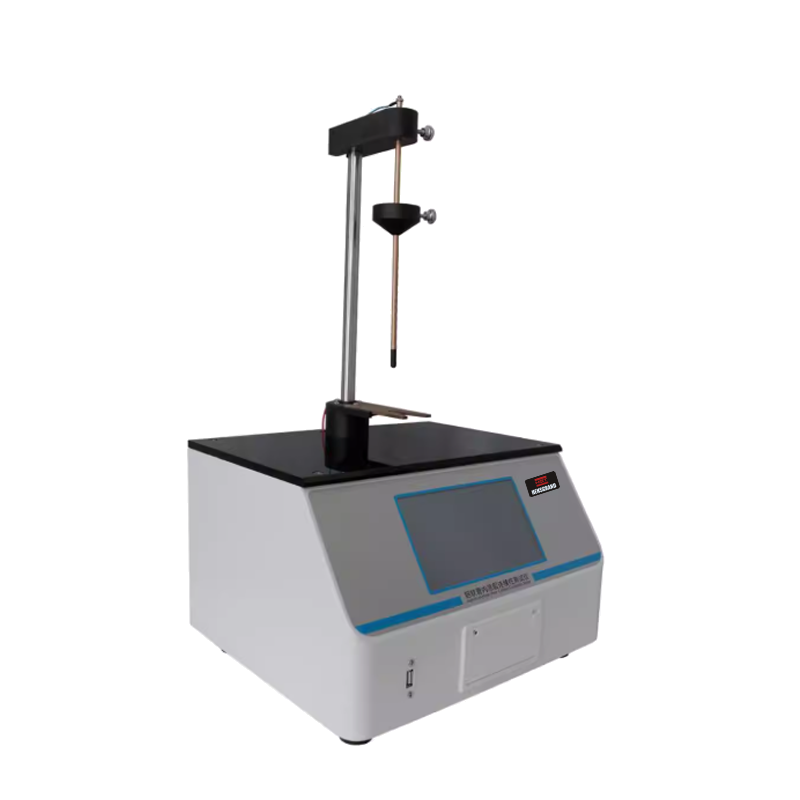

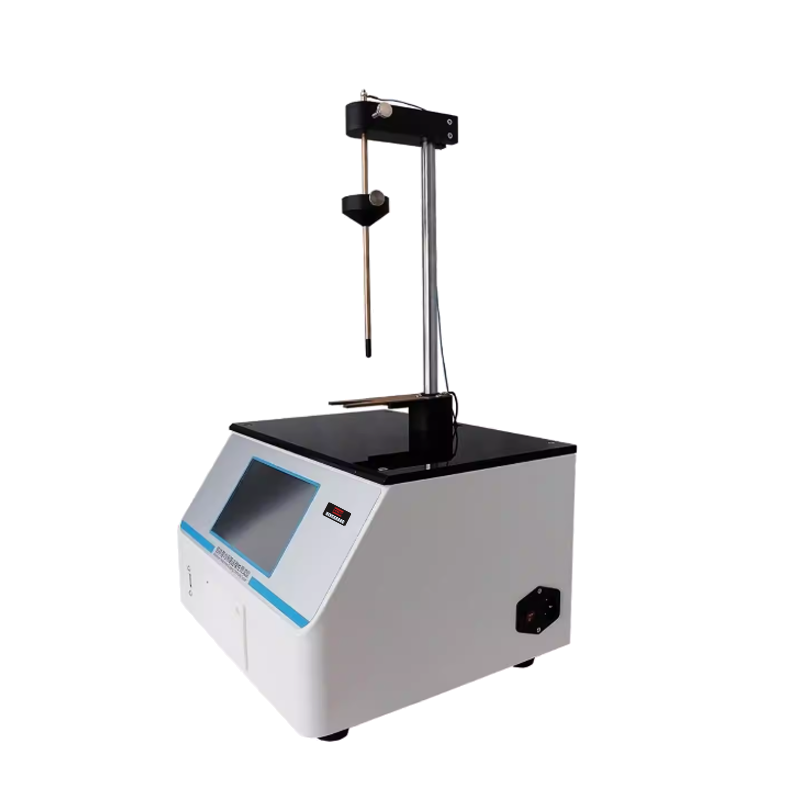

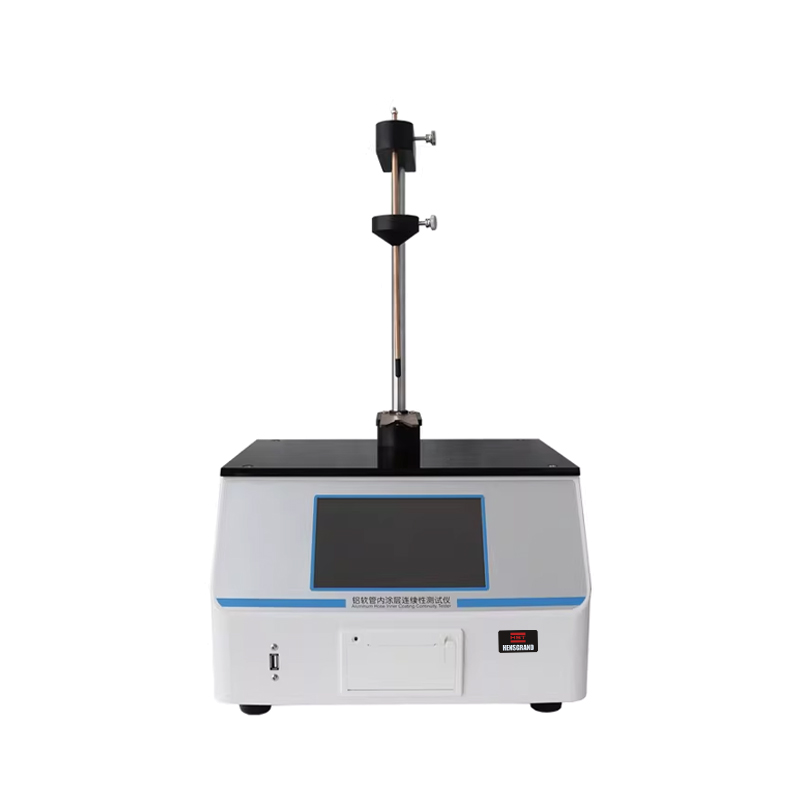

HST-ICCT45 Aluminum Hose Internal Coating Continuity Tester
HST-ICCT45 aluminum hose inner coating continuity tester is designed and developed according to the relevant standard requirements for inner coating continuity in YBB00162002-2015 "Aluminum Medicinal
Standards:
YBB00162002-2015
Request A Quote Files DownloadProduct Introduction
HST-ICCT45 aluminum hose inner coating continuity tester is designed and developed according to the relevant standard requirements for inner coating continuity in YBB00162002-2015 "Aluminum Medicinal Ointment Tube". It can complete the coating continuity test of various aluminum tubes with inner coating. It can meet the experimental needs of quality inspection, scientific research, and production.
Technical parameters
|
Test diameter |
φ10~φ45mm |
|
Test height |
10~250mm |
|
Test voltage |
DC 5V (other voltages available) |
|
Resolution |
0.1mA |
|
Control display |
Microcomputer control, LCD display |
|
System language |
Simplified Chinese/English |
|
Dimensions |
580(L)×600(B)×1420mm(H) |
|
Net weight |
About 35kg |
|
Environmental conditions |
Indoor temperature (20±10)℃, relative humidity <85% |
|
Power supply |
220V 50Hz |
