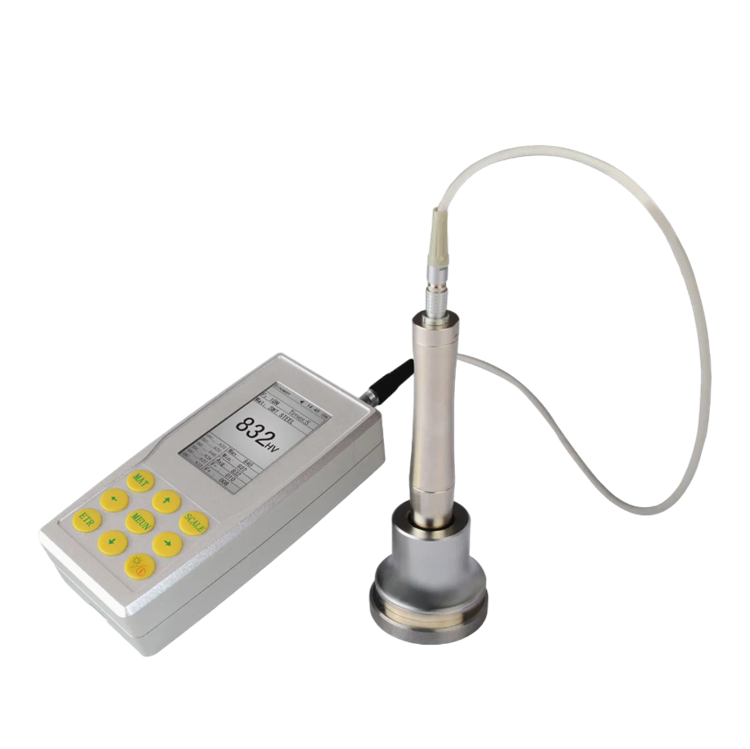

HST-U200 Portable Ultrasonic Hardness Tester

Application：

Widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.

l Hardness Test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part;

l Hardness test of axle and thin-wall pipes and vessels;

l Hardness test of wheels and turbine rotors;

l Hardness test of bit edge;

l Hardness test of welding parts;

l Measure the depth of deep hole with certain aperture, concave and convex mark with large radians, and irregular plane;

l Hardness test of most ferrous and nonferrous metals and their alloys in industrial production.

Features:

1. Perfect Accuracy--±3% HV, ±1.5HR, ±3%HB

2. Microscopic Indentation-- Only high-power Microscope can observe the indentation
3. Quick Measurement--Result in 2 seconds
4. Large LCD Display--Directly display measurement result, times count, maximum, minimal, average and deviation.
5. Friendly Operation--Operate well after short training
6. Promised Warranty--2-Year warranty for main unit (Excludes Probe)
7. Mass Storage--Save 2000 groups measurement data
8. Simple Calibration--Save 20 groups calibration data for invoking, improve calibration efficiency.
9. Standard: ASTM-A1038-05, DIN 50159-1, JB/T 9377-2010

Technical Parameter：
