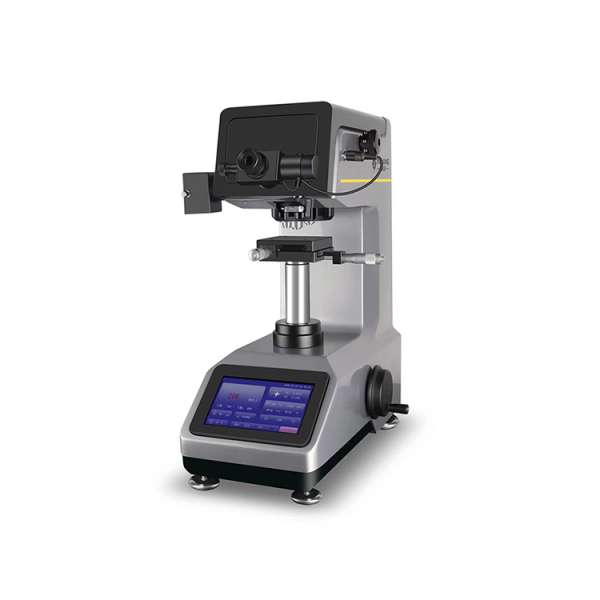

HST-HVS5/10/30/50ZT Auto-Turret Vickers Hardness Test
Hardness tester is used to determine the hardness of materials, and hardness test is a means to judge the quality of metal materials or parts of products. The so-called hardness is the ability of a material to resist the indentation of another body without residual deformation under certain conditions. The greater the resistance, the higher the hardness, and vice versa,
Specifications:
Model:HST-HVS5/10/30/50ZT
Display model:touch screen
Turret Type:Automatic
Test force:0.3Kgf(2.91N),0.5Kgf(4.9N),1Kgf(9.8N),2Kgf(19.6N),3Kgf(29.4N),5Kgf(49.0N)10Kgf(98.0N)20.0Kgf(196N) 、30.0Kgf(294N)、
Loading and unloading mode:Automatic（loading,duration,unloading）
Conversion Scale:Rockwell, Brinell
Amplification of Test:100X ,200X
Power Supply:AC220V±5% ，50~60Hz
