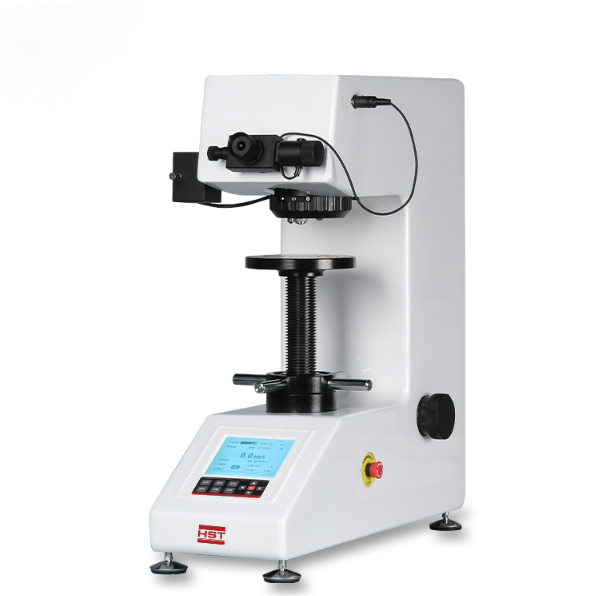

HST-HVS5/10/30/50B Digital Display manual turret Vickers hardness tester with Weight loading
HST-HVS5/10/30/50B Digital Display manual turret Vickers hardness tester with Weight loading
Standards:
Request A Quote Files DownloadHST-HVS5/10/30/50B Digital Display manual turret Vickers Hardness Tester with Weight loading
Application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, Metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple Microscope with adjustable brightness and comfortable vision.
2. Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;
3. Industrial display can display test methods, test force, measurement of indentation length, hardness value, test force retention time, number of measurements and type in year, month, date, test results and data processing;
4. Directly confirm the hardness value by measuring the actual length;
5. With internal printer; test results and test data directly print;
6. LCD large-screen display to facilitate observation, test conditions, the test process is straightforward;
Technical Parameters:
|
MODEL |
HST-HVS5B |
HST-HVS10B |
HST-HVS30B |
HST-HVS50B |
|
Turret Type |
Manual |
|||
|
Test force |
0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) |
0.3kg(2.94N), 0.5kg (4.9N), 1kg (9.8N), 3kg (29.4N), 5kg (49N), 10kg (98N) |
1kg(9.8N),3kg(29.4N),5kg(49N),10kg(98N),20kg(196N), 30kg(294N) |
1kg(9.8N), 5kg(49N), 10kg(98N), 20kg(196N), 30kg(294N), 50kg(490N) |
|
Display |
5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average, standard deviation, return |
|||
|
Loading control |
Automatic (load/hold/uninstall) |
|||
|
Optical channel |
Dual light channels (eyepieces and CCD camera channels) |
|||
|
Test force retention time |
1～99s |
|||
|
Optical system |
Objectives: 10×, 20× (Customizable 40X) Eyepiece Magnification: 10× (can changed to 15×) Total magnification (μm): 100×, 200×(can changed to 150X ,300X) Measuring range: 400μm Resolution :0.125μm |
|||
|
Hardness Test range |
(5-3000)HV |
|||
|
XY test stand (optional) |
Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
|||
|
Maximum height of specimen |
165mm |
|||
|
Maximum width of specimen |
130 mm(distance from the center line of the indenter to the wall) |
|||
|
Data output |
Built-in printer interface, (RS232 serial interface) |
|||
|
Meet standard |
GBT4340.1, GBT4340.2, ASTM_E92 |
|||
|
Conversion of hardness value |
According to GB1172-99 and ASTM standards |
|||
|
Accuracy |
JJG260-91, JIS B 7725, JIS B 7734, GB/ T3430.2-99, ASTM E-384, ISO 6507-2, ISO4546 |
|||
|
voltage |
AC220V/50HZ |
|||
|
Overall size |
585×200×630mm |
|||
|
Weight |
42kg |
|||
