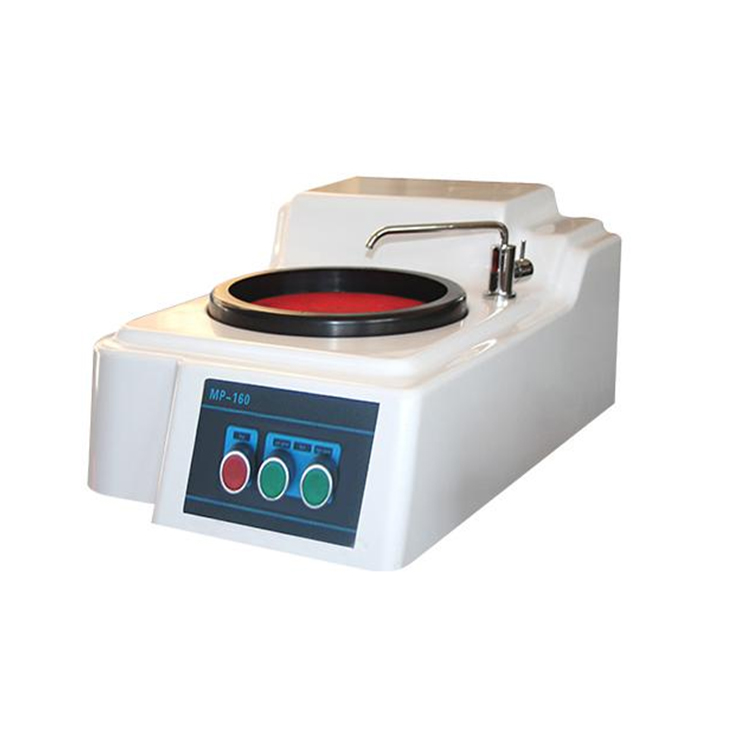

MoPao160 Metallographic Grinding and Polishing Equipment
1. Application and Feature of Grinding-Polishing Machine This polisher is of single disc and suitable for carrying out pre-grinding. normal grinding and polishing against metallographic specimens. Sin
Standards:
Request A Quote Files Download1. Application and Feature of Grinding-Polishing Machine
This polisher is of single disc and suitable for carrying out pre-grinding. normal grinding and polishing against Metallographic specimens. Since the machine has two speed, 300rpm and 600rpm,which favors the machine with wide applications. The machine is equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure . It is convenient and on the safe side .It is an ideal option for the lab .of factories, science and research institutions and universities.
2. Main Specifications:
| Model | MoPao160 |
| Grinding/Polishing Disc Diameter | 203mm (250mm can be ordered) |
| Rotate speed | 300rpm ,600rpm ( two steps stationary speed) |
| Motor | 370W |
| Operating voltage | AC 380V 50HZ |
| Dimension | 740×400×310mm |
| Weight |
30kg |
