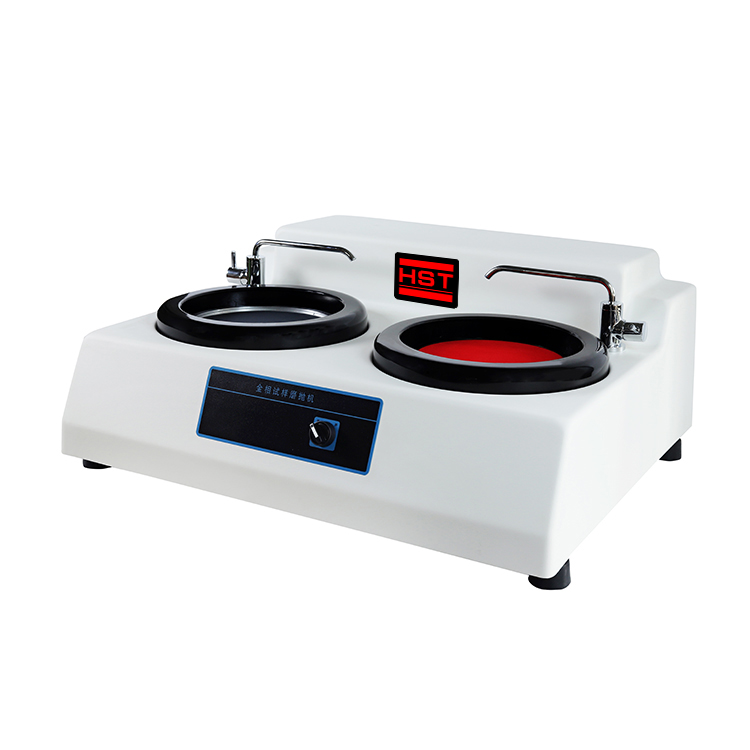

MoPao2 MoPao2S Automatic Grinding And Polishing Machine
MoPao 2and 2S model automatic grinding /polishing machine adopt international advanced manufacturing technology in accordance with international standards.
Standards:
ISO,ASTM
Request A Quote Files Download
MoPao2 MoPao2S Automatic Grinding And Polishing Machine
Feature:MoPao 2and 2S model automatic grinding /polishing machine adopt international advanced manufacturing technology in accordance with international standards.
This series adopts the advanced micrometer control system ,which makes grinding disc and grinding head speed stepless adjustable ,sample preparation pressure ,time setting .Operation can only change grinding disc and sandpaper fabic ,showing more wide applicability.
The machine has the following features such as optional grinding disc rotation ,quick-change grinding disc ,vertical preparation fixture pneumatic single point loading .
This machine has cooling device and abrasive souring nozzle ,equipped with beautiful and pratical ABS sheel ,stainless steel standard parts, and it is never rust.
Specifiction
| Model | MoPao 2 | MoPao 2S |
| grinding disc quality | 1 | 2 |
| grinding disc diameter | ø250mm/300mm | ø250mm |
| grinding disc speed | 50-1000rpm&150/300rpm | |
| grinding disc rotation | Clockwise or anticlockwise | |
| grinding head speed | 5-100RPM | |
| loading range | 5-60N | 5-60N |
| sample preparation time | 0-9999S | 0-9999S |
| sample diameter | ø30MM(22MM OR 45MM) | ø30MM(22MM OR 45MM) |
| lighting | LED | LED |
| gas source pressure | 0.6--0.8MPA | 0.6-0.8MPA |
| input voltage | 220V/50HZ | 220V/50HZ |
| input power | 1kw | 1.3kw |
| dimension | 790*566*677mm | 730*710*635mm |
| net weight | 93kg | 98kg |
