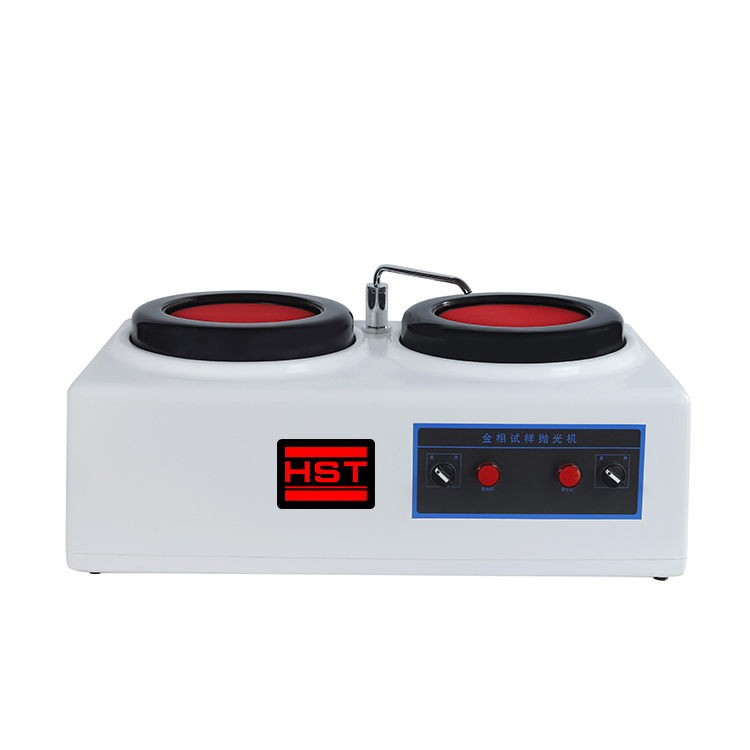

P-2T Metallographic specimen polishing machine
1. Application: Model P-2T Metallographic specimen polishing machine is a kind of double-disc table type polishing machine and can be operated by two persons at the same time. It is suitable for the p
Standards:
Request A Quote Files Download1. Application:
Model P-2T metallographic specimen polishing machine is a kind of double-disc table type polishing machine and can be operated by two persons at the same time. It is suitable for the polishing of the specimen which has been grinded. The specimen surface is very smooth after processing and can be used to observe and measure the Metallographic structure of specimen under microscope.
2. Main specifications:
| Model | P-2T |
| Diameter of polishing disc | 200mm, |
| Polishing disc rotating speed | 1400 rpm |
| Cooling method | water cooling |
| Motor | 180W |
| Power supply | Single phase, 220V, 50Hz |
| Net weight | 35 Kg |
| Dimension | 700×410×320 mm |
