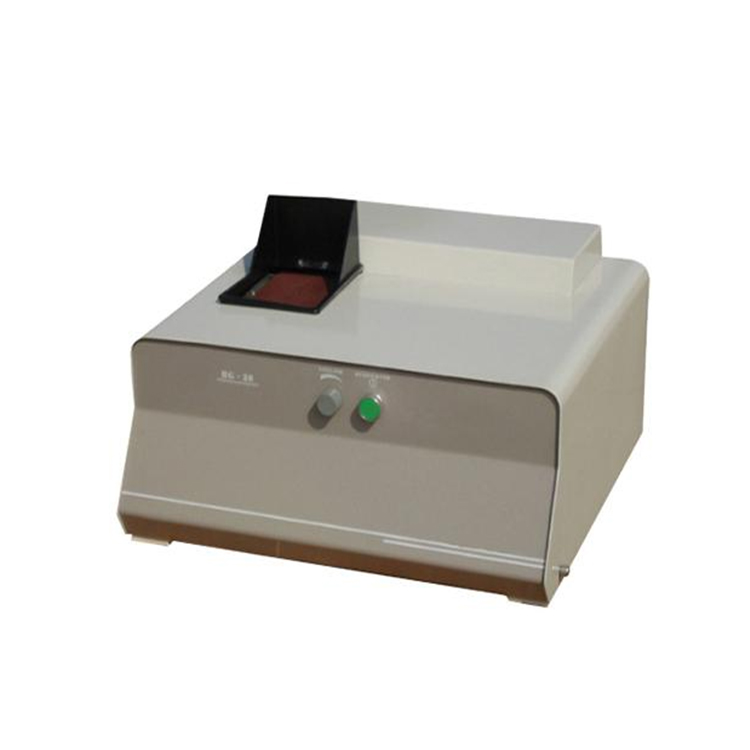

BG-30 Belt Surface Grinding Specimen Machine
1. Application:
Model BG-30 Belt surface grinding machine is of new generation design, made according to the international standard and advanced process technique. It adopts sand belt to grind and polish the specimen. The different belts can be changed swiftly. This machine can be used to replace the disc grinder and manual type abrasive paper grinding. It only takes 1-2 minutes to for each belt to finish the operation. For the grinding of spectroscopy specimen, it is very economic to save time, labor and abrasive paper. This machine can be widely used in laboratories, researching institutes and factories.
2. Main specifications:
| Model | BG-30 |
| Distance between the centers of two rollers | 255mm |
| Cooling method | water cooling |
| Power supply | three phases, 380V, 50Hz |
| Surface speed | 768 m / min |
| Rotating speed | 1400 rpm |
| Sand belt | 920mm x 100mm (L x W) |
| Motor |
550W |
