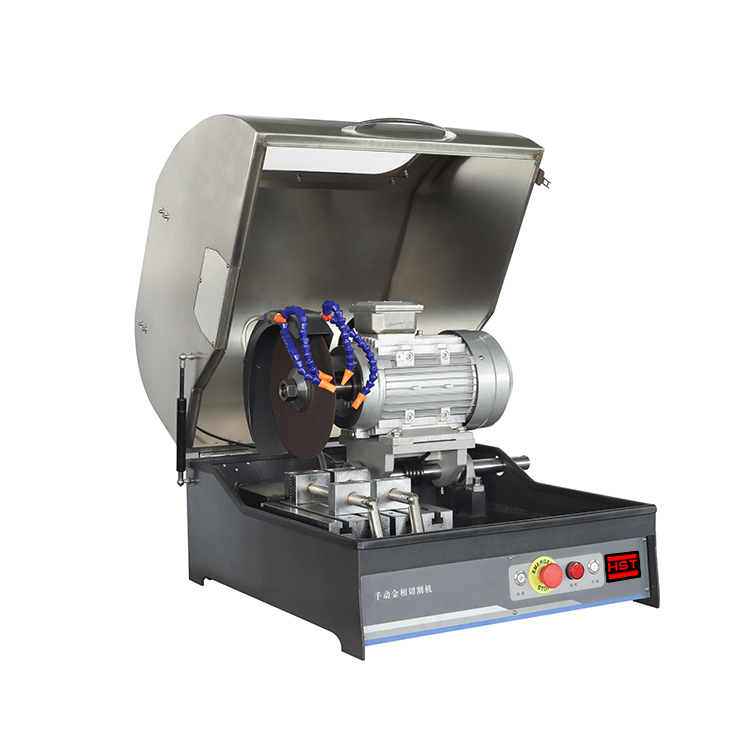

SQ-100 Manual Metallographic Sample Cutting Machine
Application: Model SQ-100Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure.
Standards:
Request A Quote Files Download
Application:
Model SQ-100 metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the Metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
2. Main specifications:
Model SQ-100 metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the Metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
2. Main specifications:
| Model | SQ-100 |
| Max. cutting diameter | 100mm |
| Cooling method |
T-slot worktable, dual drive vises Outside cooling system |
| Power supply | three phase four line (380v/50Hz) |
| Motor | Y2-1001-2-2 3 kw |
| Rotate Speed | 2800r/min |
| Abrasive wheel | ￠250X2.5X32mm |
| Cutting machine size | 280X260mm |
| Dimension | 820x780x650mm |
| Weight |
95kg |
