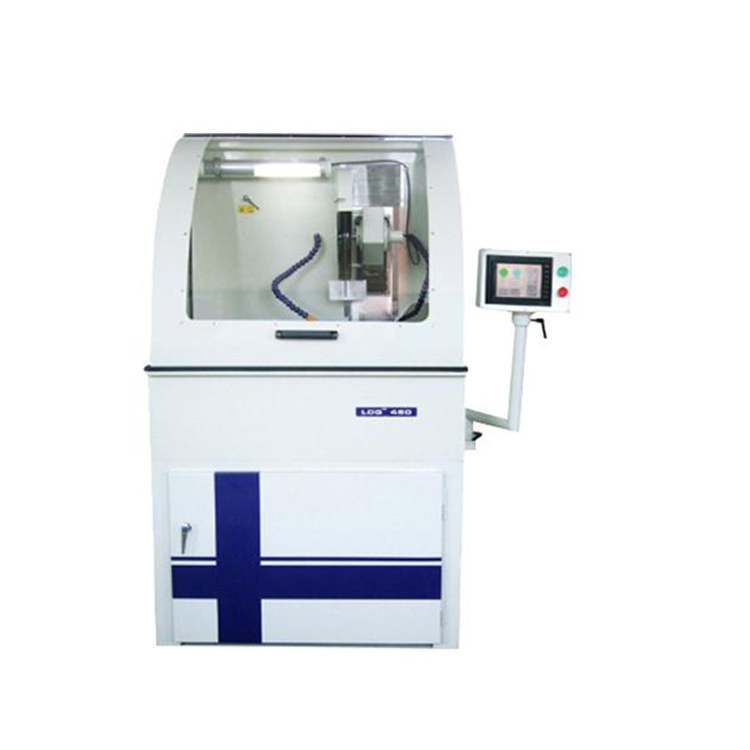

LDQ-450 Automatic Metallographic Sample Cutting Machine
1. Application: Model LDQ-450Automatic specimen cutting machine is a kind of durable cutting machine specially designed with the consideration of specimen-preparing environment. It is the ideal choice
Standards:
Request A Quote Files Download
1. Application:
Model LDQ-450 Automatic specimen cutting machine is a kind of durable cutting machine specially designed with the consideration of specimen-preparing environment. It is the ideal choice of the large specimen-preparing machine because of its mighty function and large cutting room. This machine consists of control system, cutting system, lighting system, cooling system and cleaning system etc. Two automatic cutting tables are equipped in the spacious cutting chamber. The X-axis direction is mainly used for continue parallel cutting, and the Y-axis direction is mainly used for the cutting of huge work piece. Three cutting modes make the job of cutting large specimen very easy. All kinds of cutting parameters can be displayed on the large touch-type LCD screen in real time. It is easy to operate the friendly interface. The automatic cutting can reduce operator's fatigue, improve the efficiency of specimen preparation and guarantee the consistency. The super cooling system avoids the damage of burning to the specimen when cutting. Imported gate type safety switch and explosion proof hood can provide the operator with safe guarantee.
2. Specification:
Model LDQ-450 Automatic specimen cutting machine is a kind of durable cutting machine specially designed with the consideration of specimen-preparing environment. It is the ideal choice of the large specimen-preparing machine because of its mighty function and large cutting room. This machine consists of control system, cutting system, lighting system, cooling system and cleaning system etc. Two automatic cutting tables are equipped in the spacious cutting chamber. The X-axis direction is mainly used for continue parallel cutting, and the Y-axis direction is mainly used for the cutting of huge work piece. Three cutting modes make the job of cutting large specimen very easy. All kinds of cutting parameters can be displayed on the large touch-type LCD screen in real time. It is easy to operate the friendly interface. The automatic cutting can reduce operator's fatigue, improve the efficiency of specimen preparation and guarantee the consistency. The super cooling system avoids the damage of burning to the specimen when cutting. Imported gate type safety switch and explosion proof hood can provide the operator with safe guarantee.
2. Specification:
| Model | LDQ-450 |
| Max. pass diameter | Ø160mm |
| The largest travel | Z-axis 240mm; Y-axis 200mm;X-axis 245mm |
| Cutting room size | 680 x 1030mm |
| Motor | 7.5 KW |
| Power supply | three phases, 380V, 50Hz |
| Adjustable rotating speed | 200-2200 rpm |
| Cutting speed | 0.005-1mm/s |
| Dimension | 1590X1600X1940mm |
| Weight | 900kg |
