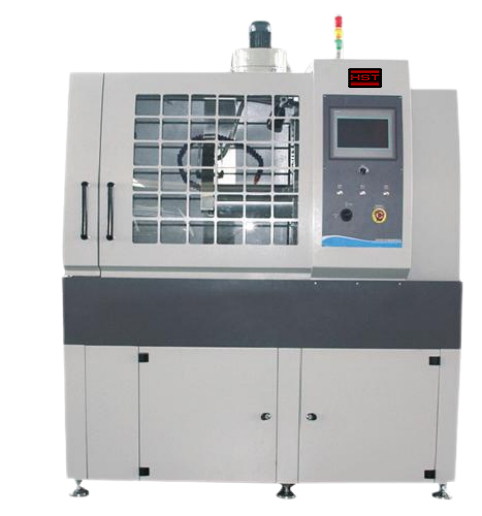

Iqiege-600 Automatic Metallographic Cutting Machine
Application: Iqiege-600 Automatic sample is a large automatic cutting machine, which provides you with a powerful way to make cutting and preparation process available. OBTACUT-600E has a stable quali
Standards:
Request A Quote Files Download
Application:
Iqiege-600 Automatic sample is a large automatic cutting machine, which provides you with a powerful way to make cutting and preparation process available. OBTACUT-600E has a stable quality, accuracy and certainly. Every day the machine can take a large workpiece cutting. OBTACUT-600E is fast, efficient and safe with high precision stepper motor, Siemens programmable controller and touch screen, high controllability and strong control ability, which is the ideal choice for preparation.
Main specifications:
Iqiege-600 Automatic sample is a large automatic cutting machine, which provides you with a powerful way to make cutting and preparation process available. OBTACUT-600E has a stable quality, accuracy and certainly. Every day the machine can take a large workpiece cutting. OBTACUT-600E is fast, efficient and safe with high precision stepper motor, Siemens programmable controller and touch screen, high controllability and strong control ability, which is the ideal choice for preparation.
Main specifications:
| Model | Iqiege-600 |
| Cutting Model | Chopping cut, Pushing cut |
| Cutting Speed | 0.05-5mm/s (adjust 0.01mm) |
| Frequency control | 0-1900RPM |
| Max Travel | 200mm at Z axis, 300mm at Y axis, 200mm at axis |
| Cutting room size | 680mm*1030mm |
| Cutting power | 11KW |
| Cutting wheel size | 610mm*4mm*38.1mm |
| Spindle rotation | 2200 RPM |
| MAX cutting diameter | 190mm |
| Voltage | 380V/50Hz/three phase |
| Dimension | 2670mm*1770mm*2435mm |
