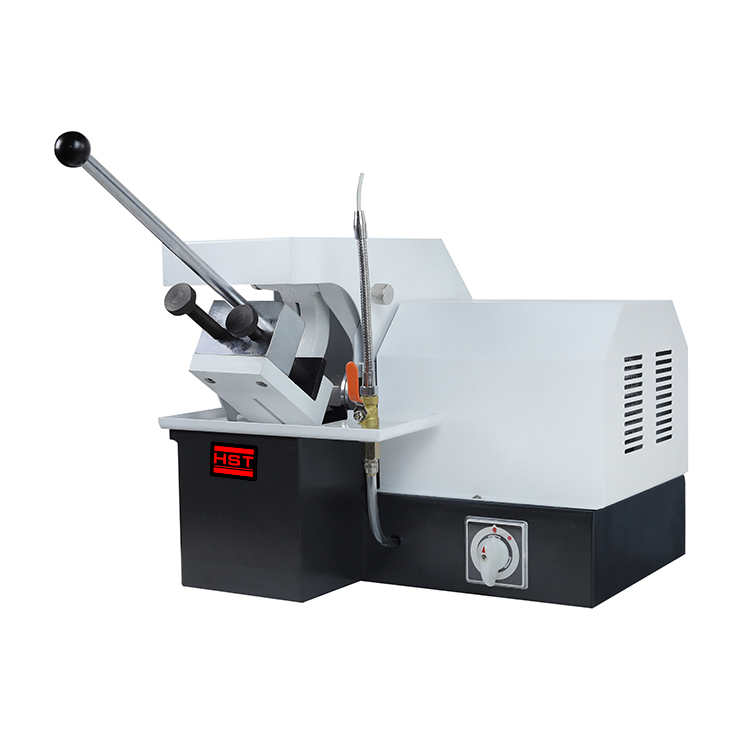

Q-2A metallographic sample cutting machine
This series metallographic specimen cutting machine can obtain metallographic specimen and it can be widely used to cut various metal materials in metallographic laboratories. The equipped cooling system can clear up the heat produced during cutting so that it will avoid the metallographic structure deforming of specimen because of heating influence. Besides various metal materials, this machine can also be used to cut other non-metal material such as plastic, rubber hose etc.
2. Main specifications:
| Model | Q-2A |
| Max. cutting section | 55 x 55mm |
| Abrasive wheel | 300 x 2 x 32mm |
| Motor | 2.2kw |
| Rotating speed | 2800rpm |
| power supply | three phases, AC 380V 50HZ |
| Net weight | 80Kg |
| Dimension | 650 x 500 x 400mm |
