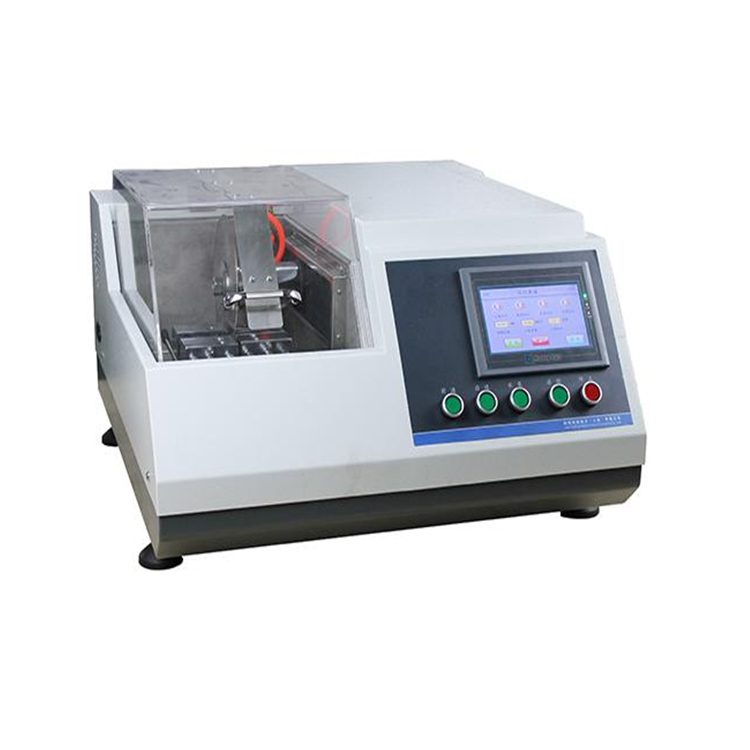

GTQ-5000B High-speed Precision Metallographic Specimen Cutting Machine
GTQ-500B Cutting Machine can be used to cut material, electronic element, electronic element, crystals, hard alloy, rock sample, core sample, concrete, organic materials, biological materials (teeth, bones), etc. Precision cutting without deformation.
The device adopts high-power servo motor drive, high locating accuracy, large range of speed, high cutting power, internal circulation cooling system, preinstall feed speed, menu controlled；liquid crystal display, users are free to define the cutting method, airtight security cutting room. It is an ideal precision cutting machine for industrial and mining enterprises, scientific research institutes to prepare high quality samples.
Main Technical Specifications
1、feeding speed：0~30mm/min（adjust size 0.01mm）
2、Speed：300~5000rpm
3、Max cutting section：φ60mm
4、Maximum stroke：Y axis 200mm
5、Grinding wheel：200*1.0*32mm；
6、Cutting power：1100W
7、Power source：220V 50HZ
8、Overall Dimension：700mm×720mm×410mm
