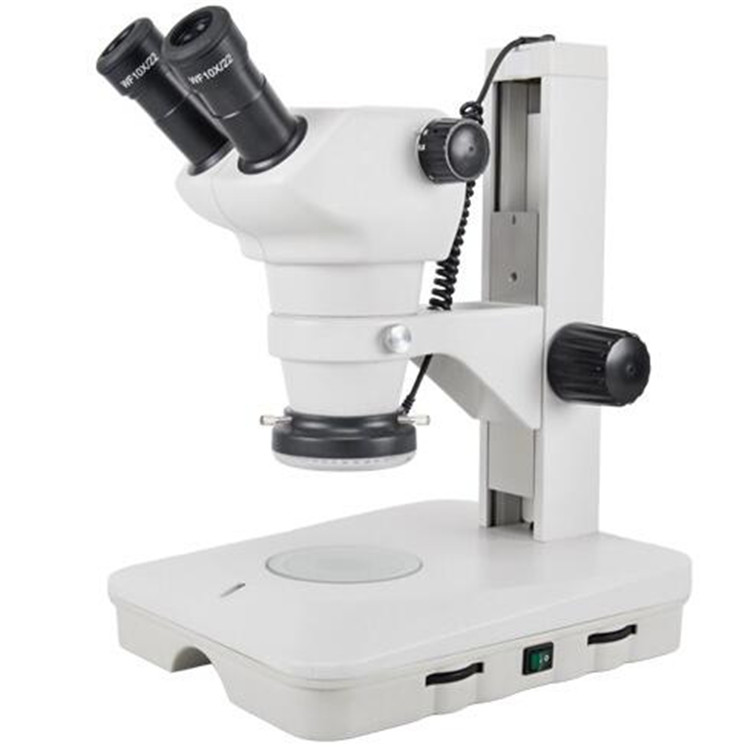

JSZ6 Stereo Microscope
Introduction The JSZ6 zoom stereo microscope is specially intended for those research staffs and QC controllers. Excellent optical performance, keeping object always in focus during whole zooming trav
Standards:
Request A Quote Files Download
Introduction
The JSZ6 zoom stereo Microscope is specially intended for those research staffs and QC controllers.
Excellent optical performance, keeping object always in focus during whole zooming travel.
The standard 117mm long working distance allowing easy handing of the sample.
• JSZ6 zoom stereo microscope adopt high performance optical components can get a high-contrast images,
and to ensure large depth of field of the flat-field image.
• Ergonomic design reduces fatigue resulting from prolonged observation.
•Ultrathin transmit and reflective LED light source design, high illumination uniformity,
the average life expectancy up to 6000 hours.
• JSZ6 is Industrial inspection stereo microscope designed for the industrial field testing.
• Full range of eyepieces and auxiliary objective lens, rich accessories are available to meet the expansion of various functions, especially for assembly and testing, as well as teaching and basic research industries.
Specificaiton
The JSZ6 zoom stereo Microscope is specially intended for those research staffs and QC controllers.
Excellent optical performance, keeping object always in focus during whole zooming travel.
The standard 117mm long working distance allowing easy handing of the sample.
• JSZ6 zoom stereo microscope adopt high performance optical components can get a high-contrast images,
and to ensure large depth of field of the flat-field image.
• Ergonomic design reduces fatigue resulting from prolonged observation.
•Ultrathin transmit and reflective LED light source design, high illumination uniformity,
the average life expectancy up to 6000 hours.
• JSZ6 is Industrial inspection stereo microscope designed for the industrial field testing.
• Full range of eyepieces and auxiliary objective lens, rich accessories are available to meet the expansion of various functions, especially for assembly and testing, as well as teaching and basic research industries.
Specificaiton
| Specification | JSZ6 | SZ6T | JSZ6D | |
| Drawing tube | Binocular viewing head, inclined at 45° | YES | ||
| Trinocular viewing head, inclined at 45° | YES | |||
| Digital viewing head, inclined at 45° | YES | |||
| Diopter adjustment eyepiece | Extra wide field, EW10X/22mm | YES | YES | YES |
| Zoom objective | 0.8X-5X | YES | YES | YES |
| Zoom ratio | 6.3:1 | YES | YES | YES |
| Working distance | 115mm | YES | YES | YES |
| Interpulillary distance | 52-75mm | YES | YES | YES |
| Glass insert | Glass insert, diameter 140mm | YES | YES | YES |
| Opal & black acrylic plate | YES | YES | YES | |
| Illumination | LED reflected and transmitted illumination 100V-240V | YES | YES | YES |
| Optional accessory |
Auxiliary objective: 0.5X (WD:211mm) 2X (WD:43.5mm) |
Option | Option | Option |
| Many kinds of stand and base | Option | Option | Option | |
| WF15X/16, WF20X/12, WF30X eyepiece | Option | Option | Option | |
| Photo attachment | Option | Option | Option | |
| Video attachment | Option | Option |
Option |
|
