Product Feature

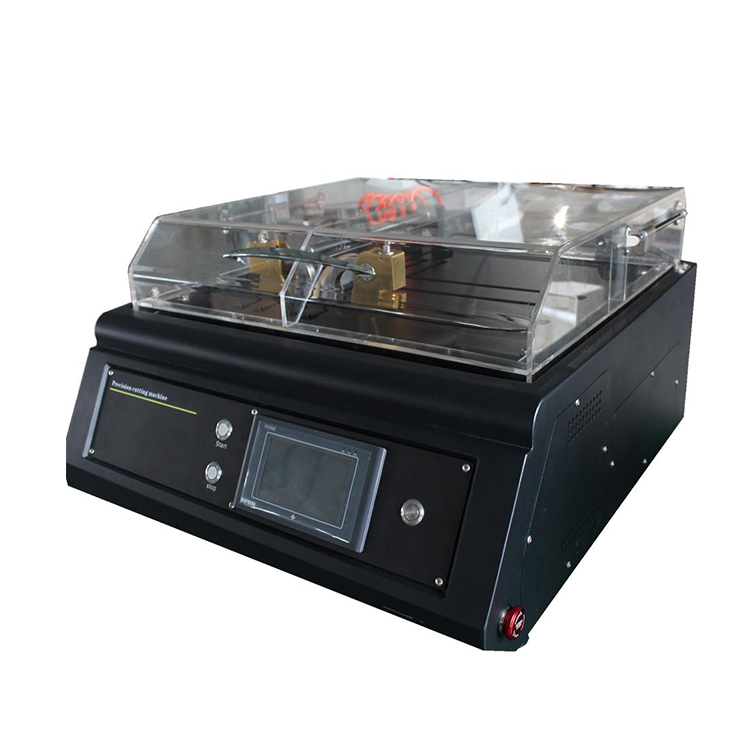

The PTQ-200 metallographic precision flat cutting machine is suitable for cutting samples of semiconductors, crystals, circuit boards, fasteners, metal materials, rocks and ceramics. The machine body is smooth, spacious and generous, providing a good working platform. And adopts high torque and high power servo motor and stepless variable speed control system, which has high efficiency and stability. Good visibility and cutting ability minimize the difficulty of operation and are easy to use. Moreover, the machine is equipped with a variety of different fixtures, which can cut irregularly shaped workpieces. It is a high-quality precision cutting machine suitable for scientific research institutions and enterprises.
Main Technical Parameter
Name
PTQ-200 plate cutting machine
Y axle range
200mm
Cutting method
straight line, pulse
Diamond cutting wheel (mm)
Φ200×0.9×32mm
Spindle rotation speed (rpm)
500-3000,can be customized
Automatic cutting speed
0.01-3mm/s
Manual cutting speed
0.01-15mm/s
Impact cutting speed
0.1-2mm/s
Max. cutting thickness
40mm
Max. clamping length of table
585mm
Max. clamping width of table
200mm
Screen display
5 inch all in one touch screen control machine
Usage date
10 Varieties available
Worktable size (W×D,mm)
500×585
Power
600W
Voltage supply
Single phase 220V, 50Hz
Dimension of machine
660×700×400mm
