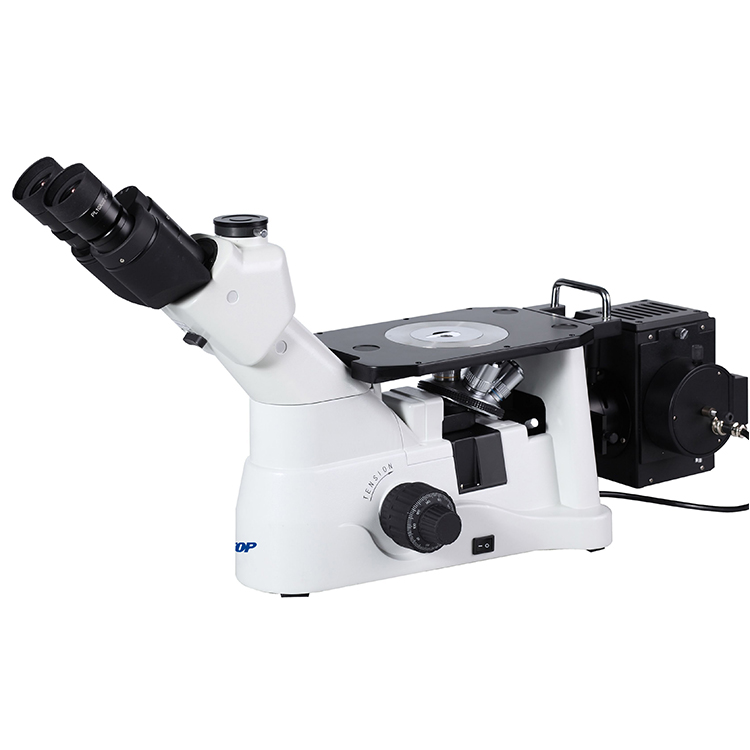

A13.303-AW Large trinocular inverted metallurgical microscope
Introduction:
It provides superior image quality, stable and reliable mechanical structure, easy operation and complete accessories. It is widely used in metallographic analysis of teaching and scientific research and material testing in factory laboratories.
Eyepiece and objective
High eye point, ultra wide field field eyepiece, PL10x/22mm, providing a wider and flat viewing space and can be equipped with various micrometers for measurement, infinity flat field achromatic long working distance professional metallographic objective , no cover glass design.
Observation tube
Hinged trinocular, adjustable visibility, 45° tilt, photographic camera, capture and save observation images, configuration computer and professional software for image analysis.
Focusing mechanism
Low-handed coarse-tuning coaxial focusing mechanism with coarse adjustment elastic adjustment device, coarse adjustment of 38mm per revolution, fine adjustment accuracy of 0.002mm.
Lighting system
Reflective Kola illuminator with iris diaphragm and central adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the life of halogen bulbs.
Stage
The coaxial low hand position adjustment moving ruler and the carrier extension plate can be added to expand the application space to meet the needs of customers with different needs.
Technical Specification
