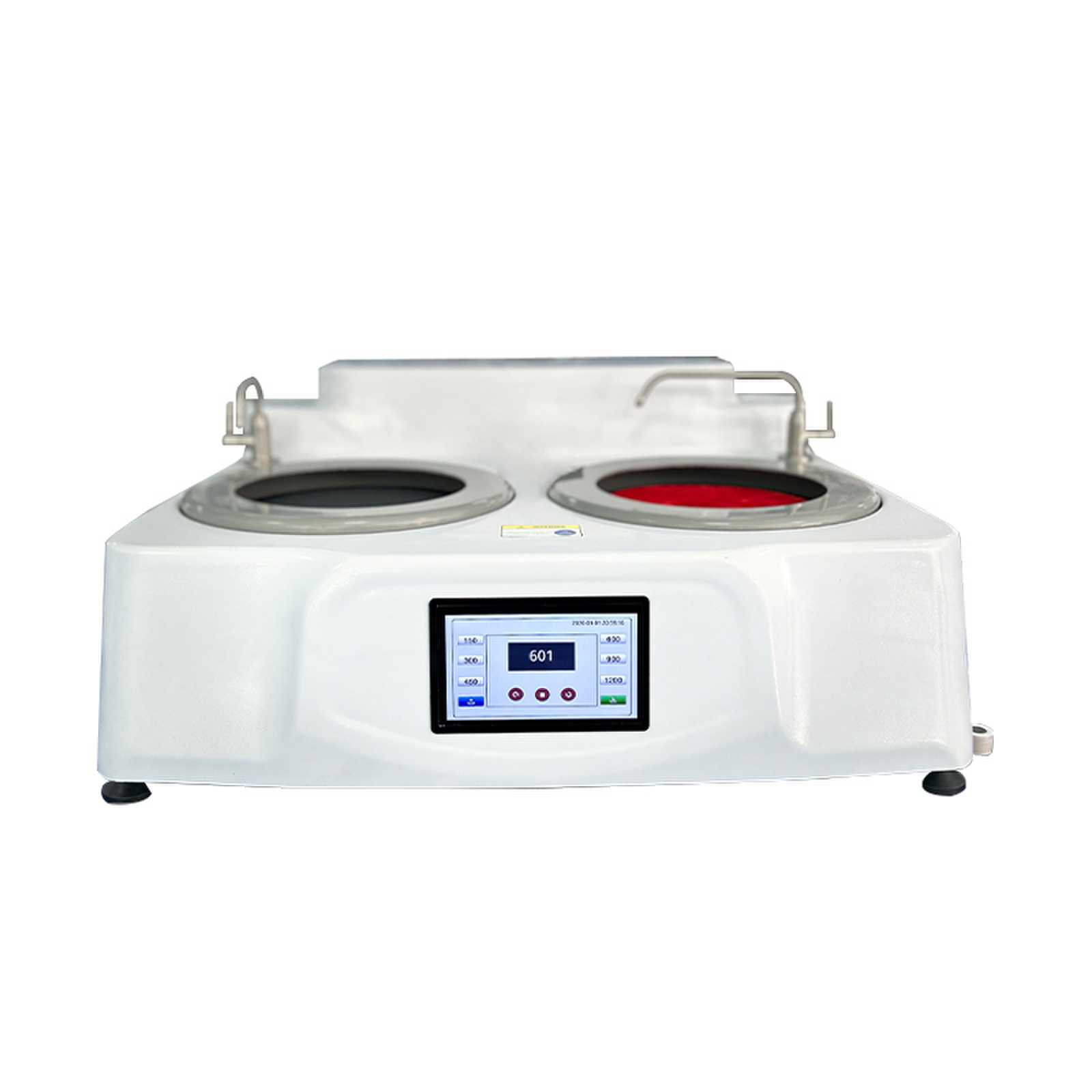

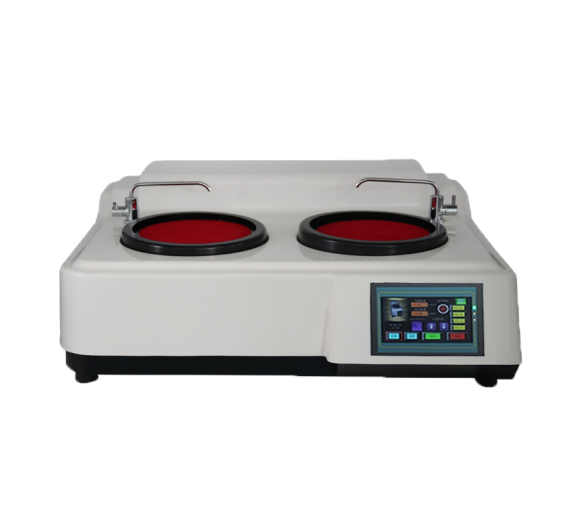

HST-MP2BT Metallographic Specimen Polishing Grinding Machine
Features:
This grinding and polishing machine is a double-disc desktop machine. Through the frequency converter speed regulation, it can directly obtain an adjustable speed between 50-1200 rpm and six levels of customization, making the machine more widely applicable.
One machine with multiple uses, easily complete the pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples
Touch screen operation, simple operation
Real-time display of grinding and polishing disc speed
The grinding and polishing disc is finely ground and surface treated to ensure flatness and easy disassembly
Two people can operate it at the same time. It is an ideal sample preparation equipment for factories, scientific research units and college laboratories.
Main Technical Parameters:
|
Model |
HST-MP2BT |
|
Polishing disc diameter |
φ203mm |
|
Grinding disc diameter |
φ203mm |
|
Rotating speed |
1. Stepless speed: 50-1200 rpm 2. Six-level fixed speed: 150 rpm, 300 rpm,450 rpm, 600 rpm, 900 rpm, 1200 rpm |
|
Sandpaper diameter |
200mm (customizable φ230mm/250mm) |
|
Turn |
Water cooling system |
|
Motor |
550W |
