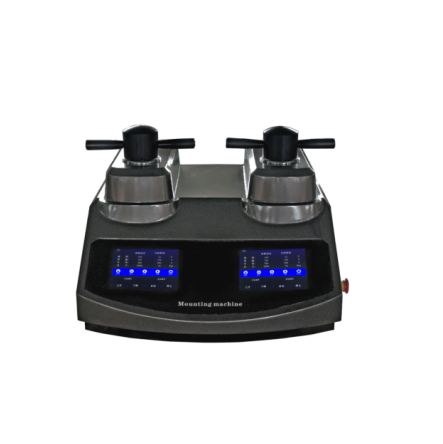

HST-ZXQ5YS Hydraulic Automatic Metallographic Specimen Mounting Press

HST-ZXQ5YS Hydraulic Automatic Metallographic Specimen Mounting Press

Application：

Automatic metallographic specimen mounting press is a kind of fully automatic mounting press, equipped with in-out water cooling system. It is suitable for the hot mounting (thermo-hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features：

● Quick sample preparation within 5 minutes

● 10 groups of data storage

● Electro-hydraulic pressure loading method

Technical Technical Specifications

Model	HST-ZXQ5YS
The Sample Diameter	Ø22mm or Ø30mm or Ø45mm(choose 1)
Sample preparation pressure	0-10MPa
Sample preparation time	5-6min
Sample preparation temperature	35~300℃
Cooling method	Water Cooling
Maximum Consumption	1600W (22mm, 30mm), 2000W (45mm)
Dimension and Net Weight	650700500mm,100kg
Package Size and Net Weight	835715560mm,111.5kg
Power Supply	220V, 50Hz,Single phase

Standard accessories：

Name	Qty	Name	Qty
Metallographic Specimen Mounting Press	1pc	Pipe hoop	2pc
Plastic spoon	1pc	Filter	1pc
Thermocouple	1pc	Certification	1pc
Water inlet pipe, Water outlet pipe	Each 1pc	Manual	1pc
