Application:

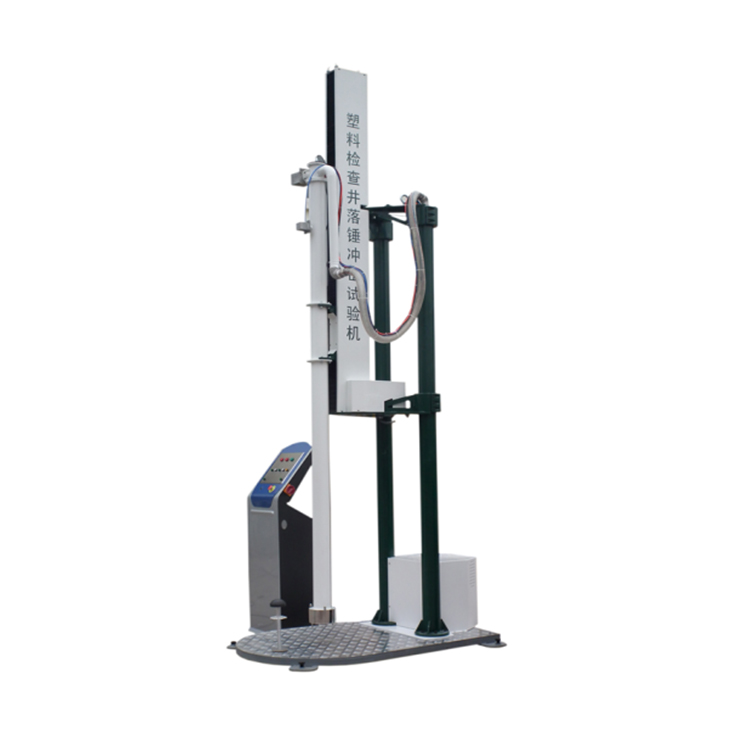

This machine is used to test the impact resistance of plastic manhole bases and shaft walls.

Standards:

CJ/T326-2010 Plastic Manholes for Municipal Drainage

CJ/T233-2016 Plastic Manholes for Residential Drainage

Technical Parameters:

Drain base diameter, flume impact: Φ315mm to Φ1200mm;

Drain base diameter, sidewall impact: Φ315mm to Φ1200mm;

Impact height: 2.5m;

Impact drop pipe lift stroke: 1200mm;

Hammer lift method: Vacuum suction;

Hammer: D90 1.0kg;

Hammer head curvature radius: Rs50;

Air source: 0.5MPa to 0.8MPa compressed air;

Power supply: 220VAC 50Hz, single-phase, three-wire;

Base dimensions: 2000mm (L) × 1400mm (W) × 4700mm (H).
