salt spray test chamber

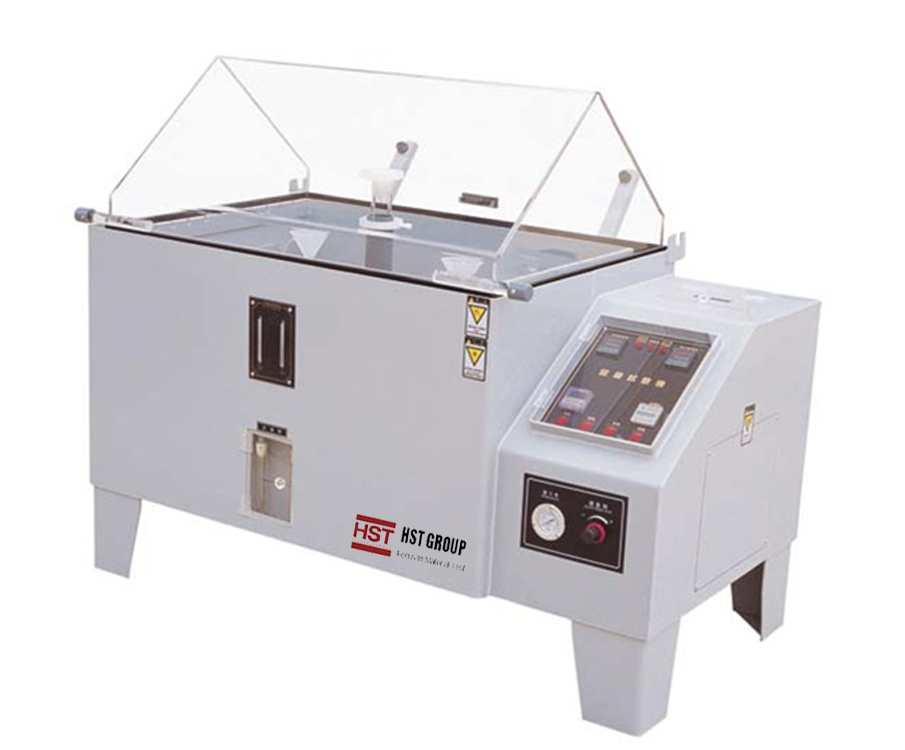

Salt spray test chamber

Product Introduction:
Salt spray test chamber is ideal for testing the resistance to salt spray corrosion of some products by measuring and comparing similar materials, their usability quality.       It is applicable to test salt spray corrosion resistance of such products as parts, electronic components, protective layer of metallic material and industrial products
Product Standard:
GB/T2423.17-2008
GB/T 2423.18-2000
GB/T10125-1997
GB/T10587-2006
GB10593.2-1990
GB/T1765-1979
GB/T1771-2007
GB/T12967.3-2008
GB/T5170.8-2008
IEC、MIL、DIN、ASTM, etc
Body specification (60/90/120)
60：inner box: 600*450*400(L*M*H)
outer box: 710*560*560(L*M*H)
90：inner box:900*600*500(L*M*H)
outer box:1050*750*600(L*M*H)
120：inner box:1200*1000*500(L*M*H)
outer box:1350*1150*600(L*M*H)
Control system：
1.       HDT temperature controller
2.       Digital display PID automatic calculation,
3.       SSR output
4.       High-stability platinum temperature probe.
5.       Temperature error: ±1℃
6.       Pressure Tank adopts Henry's Law, temperature and humility easy to adjust, testing temperature reach up to 95%, with national standard met.
Water supplement system：
Automatic and manual water supplement system can keep the test continuous, meeting clients’ various environmental requirements.       (With a tap water pipe ready under automatic water supplement)
