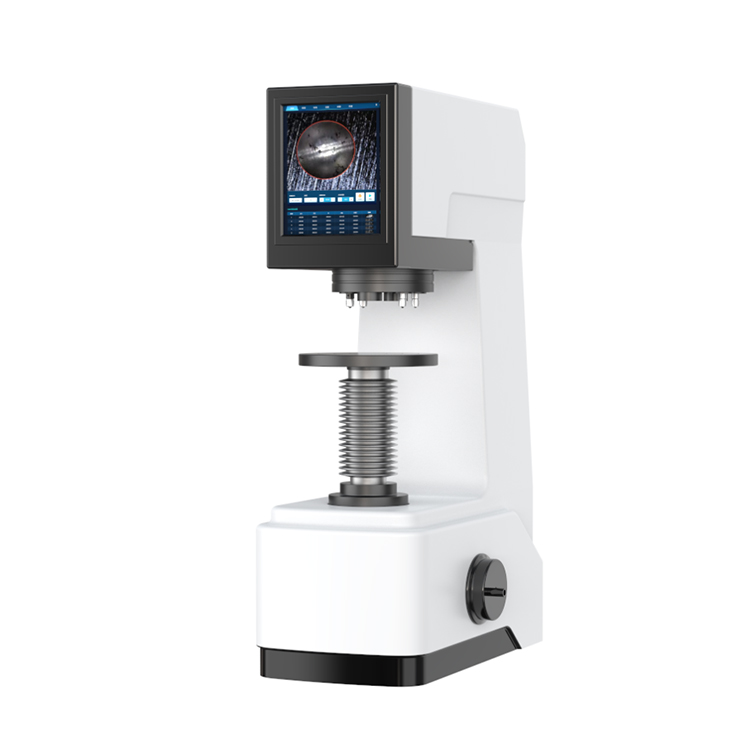

HST-HB3000T-AZF Automatic Brinell hardness tester
Product introduction
1)The force value ranges from 31.25-3000kGF;12 kinds of Brinell ruler, which can be customized by users;
2)The Z-axis rises and falls automatically. After placing the sample, it rises automatically and begins to press marks.Electric loading closed-loop control, automatic loading;
3)Each gear force is automatically compensated, and the precision of the force value (3000Kg) is increased by one order of magnitude to 1/1000;
4)Automatic turret, indenter position and measurement position automatic conversion;
Technical parameters
|
Model |
HST-HB3000T-AZF |
|
Brinell hardness scale |
HBW1/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HB 162.5 HBW5/250 HB w5/750 HBW10/100 HB 1500 HBW10/3000 HBW10/500 HBW10/1000 |
|
Test force (Kgf) |
31.25.5 KGF (306.45N), 62.5 KGF (612.9N), 100KGF (980.7N), 125kGF (1226N), 187.5 KGF (1839N), 250kGF (2452N), 500kGF (4903N), 750KGF (4905n), 1000kGF (7905n), 1500kGF (14710N), 3000kGF (29420N) |
|
Carried standard |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
|
Accuracy of test force |
62.5 ~ 250kGF ≤1% 500 ~ 3000kGF ≤0.5% |
|
Measuring device resolution |
0.1 um |
|
Hardness resolution |
0.1 HBW |
|
Bao load time |
0 ~ 99 s |
|
Data output |
LCD display |
|
Data store |
The measured values are stored in EXCEL format on a usb flash disk |
|
Maximum allowable specimen height |
350 mm |
|
Distance from indenter to wall |
250 mm |
|
size |
700 * 340 * 970 mm |
|
Weight |
160 kg |
|
Power supply |
AC220± 5%, 50 ~ 60 hz |
