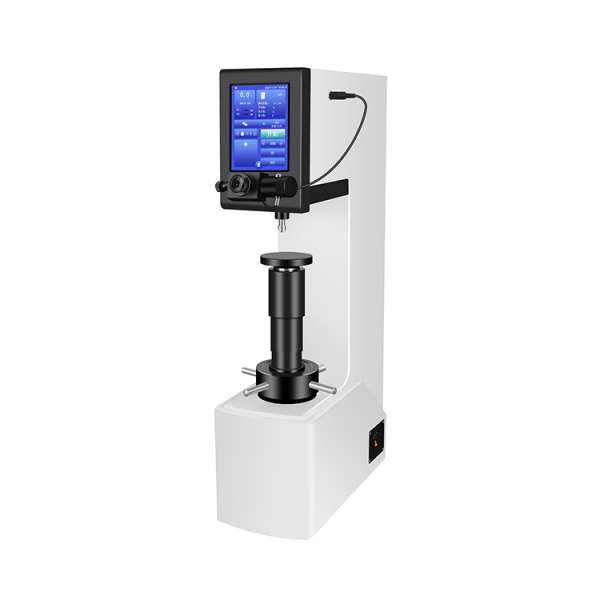

HST-HBS3000TZ Automatic Brinell Hardness Tester

Production Instruction:
Automatic turret, objectives and indenter can switch freely, testing point is positioning automatically，auto loading,auto unloading.With two objectives outer lighting,almost solve the problem which can not test when indentation is too small or too big, outer lighting make the indentation more clear and precise.Objective with digital encoder, when test D1,D2 value, LCD display show hardness value ,D1 and D2 value directly.

Specifications:
Model: HST-HBS3000TZ
Brinell hardness scale:
HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000
Accuracy of test force:62.5～250kgf≤1% 500～3000kgf≤0.5%
Holding/Dwell time: 0～99S
Data output: LCD display
Date storage: measured value is saved in USB stick in EXCEL format
Voltage: AC220+5%,50～60Hz
