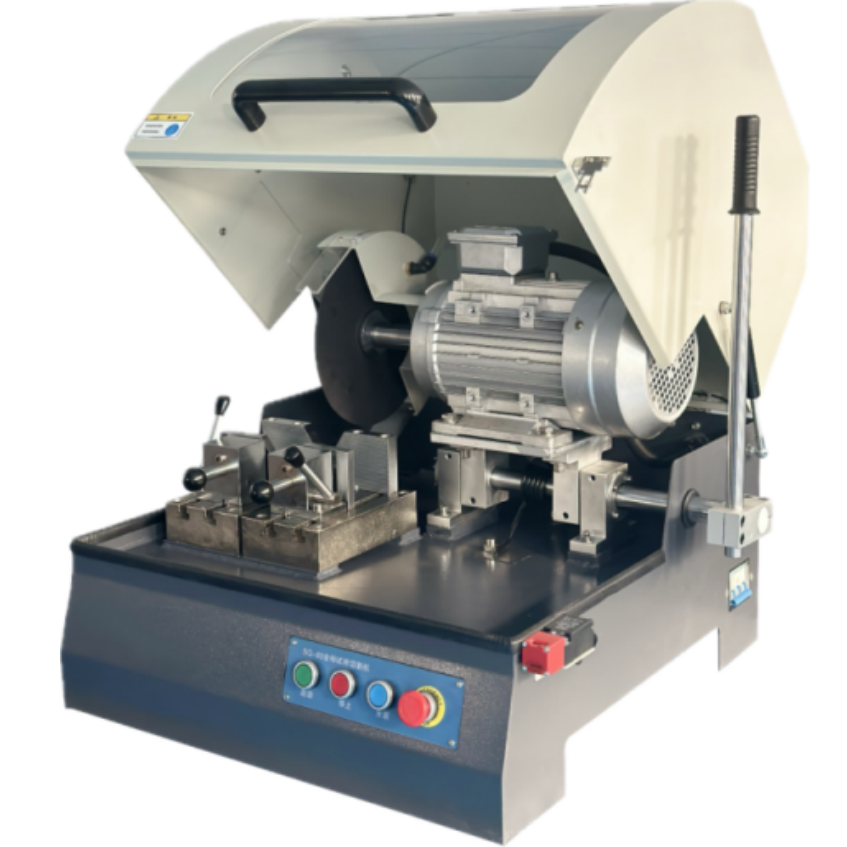

HST-SQ60A Manual Metallographic Sample Cutting Machine
HST-SQ60A Manual Metallographic Sample Cutting Machine
Applications
Model HST-SQ60A metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid burning the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
● Quick clamping vice.
● LED Lighting system is optional
● Large volume water cooling system
Technical Parameters
|
Model |
HST-SQ60A |
|
Maximum cutting diameter |
Ø60mm |
|
Spindle speed |
2800 rpm |
|
Cutting power |
2.2kw |
|
Cutting wheel |
250×1.5×32mm |
|
Workbench size |
200*230mm |
|
Cooling system |
water cooling |
|
Cooling Liquid Tank |
Cooling Liquid Tank 60L |
|
Water tank size and net weight |
620*500*395mm,21kg |
|
Water tank packaging size and Gross Weight |
675*550*530mm,30kg |
|
Dimensions and Net weight |
730*720*680mm,107kg |
|
Package Size and Gross weight |
840*840*800mm,130kg |
|
Power supply |
Three-phase 380V,50HZ |
