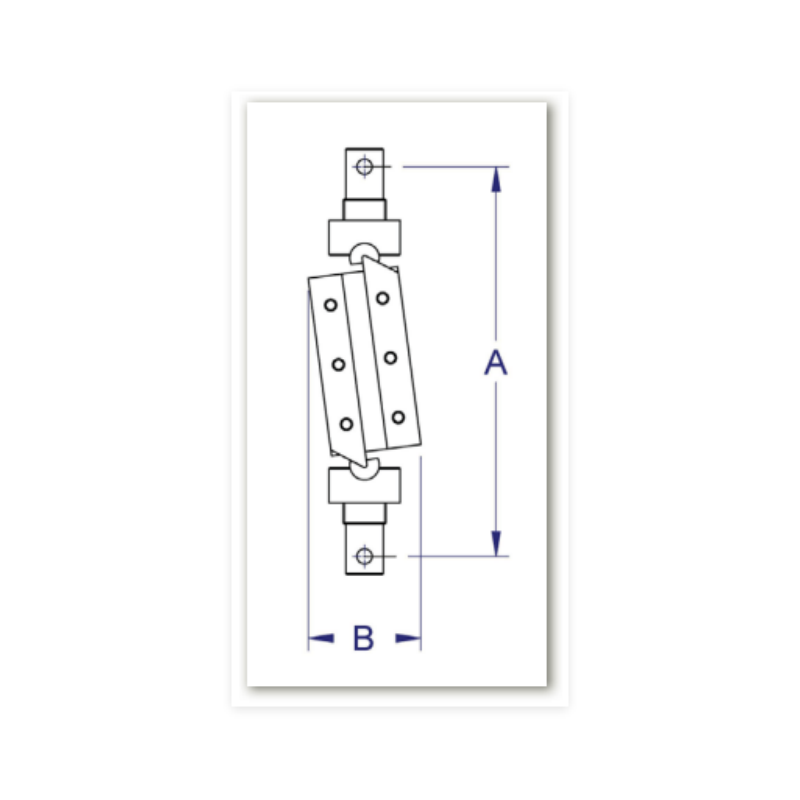

ASTM D4255 FIG1 Rail Shear Test Fixture
ASTM D 4255 describes both 2 Rail and 3 rail methods of determining the in-plane shear strength of a composite laminate panel.
Standards:
ASTM D4255
Request A Quote Files DownloadASTM D4255 FIG1 Rail Shear Test Fixture
Applications:
ASTM D 4255 describes both 2 Rail and 3 rail methods of determining the in-plane shear strength of a composite laminate panel. In the 2 Rail test (Method A) a laminate panel specimen is clamped between loading plates and yokes and then subject to shear loading. Measurement of shear strain requires the use of strain gauges on the specimen.Features:
Conforms to ASTM D 4255
Suitable for non-ambient temperatures
Parameter:
|
Model |
HST-GST104A |
|
Standards |
ASTM D 4255 |
|
Capacity |
100kN |
|
Test type |
Tension |
|
Specimen size |
76×152mm |
|
Temperature |
0℃~40℃ |
Files Download
| Name | Type | Size | Download |
|---|---|---|---|
| ASTM D4255 FIG1 Rail Shear Test Fixture | 179 KB |
