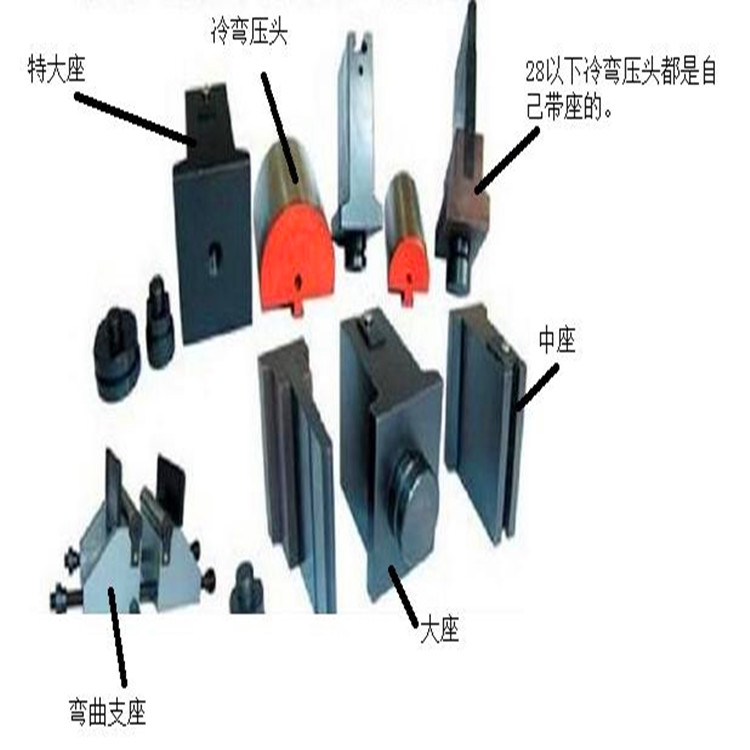

Bending fixture for hydraulic universal testing machine
1.Application:
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2.Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Frame:
The oil cylinder is at the bottom of the load frame,tension space is at the upside and compression &bending spaces are between lower crosshead and working table.It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force.The lower crosshead is driven by motor throng decelerator,chain transmission device and screw pair to realize the adjustment of testing space.
4.Specifications:
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2.Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Frame:
The oil cylinder is at the bottom of the load frame,tension space is at the upside and compression &bending spaces are between lower crosshead and working table.It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force.The lower crosshead is driven by motor throng decelerator,chain transmission device and screw pair to realize the adjustment of testing space.
4.Specifications:
| Model | WAW-300D |
| Structure | 4 columns and 2 screws |
| Control way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
| Max.load (kN) | 300kN |
| Load accuracy | ≤±1% |
| Load range | 2%-100%FS |
| Load resolution | 1/300000 |
| Deformation Measurement Range | 2%～100%FS |
| Deformation accuracy | ≤±1% |
| Displacement resolution (mm) | 0.01 |
| Displacement error | ≤±0.5% |
| Max.piston stroke(mm) | 250 |
| Max piston moving speed | 0-90mm/min stepless speed adjusting |
| Crosshead lifting speed | 200mm/min |
| Max. tension test space | 750mm (can customize) |
| Max.Compression Test Space | 600mm (can customize) |
| Column clearance(mm) | 420 |
| Clamping method | Hydraulic clamp |
| Round specimen clamping range (mm) | Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional ) |
| Flat specimen clamping range (mm) | 0-15 (15-30 Optional) |
| Flat specimen clamping width(mm) | 80 |
| Compression plate size (mm) | φ160 |
| Bending roller distance(mm) | 450 |
| Width of bending rollers (mm) | 120 |
| Power supply | 3-phase,AC380V, 50Hz（can be customized） |
