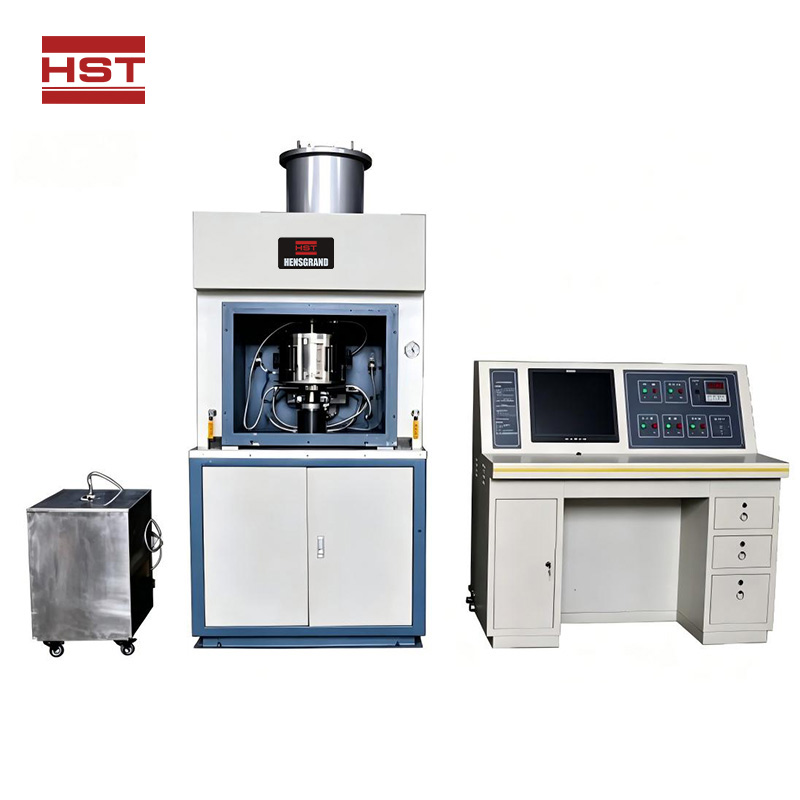

HST MMG-10 High-Temperature High-Speed Friction and Wear Tester
HST MMG-10 High-Temperature High-Speed Friction and Wear Tester
Standards:
Request A Quote Files DownloadApplication Range
HST MMG-10 High-Temperature High-Speed Friction and Wear Tester is a multi-functional friction and wear testing machine independently developed by our company. It is mainly applied to simulate three-body wear tests under high-temperature vacuum or gas-shielded environments.
In addition to covering all application functions of the American FALEX Model 6 Multi-Specimen Test Machine, it integrates the testing capabilities of high-temperature end-face wear and high-temperature ball-on-disc wear. This instrument serves as an essential simulation evaluation tester for the research and development of various high-temperature resistant materials, high-temperature coatings, medium-to-high grade hydraulic oils, internal combustion engine oils and gear oils. By adding dedicated control programs, it can also conduct standard evaluations in accordance with ASTM D4172-94 and ASTM D2266-91 Standard Test Methods for Wear Preventive Characteristics of Lubricating Fluids (Four-Ball Method), and complies with China Petrochemical Corporation’s SH/T 0189-92 Standard Test Method for Wear Preventive Characteristics of Liquid Lubricants (Four-Ball Method).
Under specified contact load, the tester supports rolling, sliding, and combined sliding-rolling friction modes at ambient temperature, high temperature, or under controlled protective atmospheres. Equipped with a stepless speed regulation system, it can evaluate the friction and wear performance of lubricants, metals, plastics, coatings, rubber, ceramics and other materials at ultra-low or ultra-high rotational speeds. Particularly, its testing performance for three-body wear under high-temperature and gas-shielded conditions reaches an internationally advanced level.
End-face and ball-on-disc friction pairs are supplied as standard accessories, and the machine boasts strong expandability for additional friction pair modules, including: low-speed ball-on-disc testing (large/small discs, single-pin / three-pin configurations), long-duration four-ball anti-wear testing, four-ball rolling contact fatigue testing, three-piece bronze-ball lubrication testing, ball-on-disc testing, slurry abrasion testing, lip seal torque and stick-slip friction testing for rubber sealing rings. The high-temperature end-face module is widely adopted in scientific research institutes.
Model MMG-10 enjoys broad application prospects across tribology research, petrochemical engineering, machinery, energy, metallurgy, aerospace industries, as well as universities and research institutions.
Specification
|
Parameter Description |
Technical Specification |
|
Test Force |
|
|
Axial test force working range (stepless adjustable) |
10～10000 N |
|
Relative indication error of test force |
±1% |
|
Zero-point sensitivity of test force indication |
±1.5 N |
|
Automatic loading rate of test force |
500 N/min |
|
Relative indication error of long-term constant test force |
±1% |
|
Friction Torque |
|
|
Maximum measurable friction torque |
5 N·m |
|
Relative indication error of friction torque |
±2% |
|
Friction load sensor capacity |
100 N |
|
Force arm length for friction measurement |
50 mm |
|
Spindle Stepless Speed Regulation System |
|
|
Single-stage stepless speed range |
0.1～2000 r/min |
|
Spindle speed indication error |
±1% |
|
Test Medium |
Gas, abrasives, etc. |
|
Tester Heating System |
|
|
Temperature range of cylindrical heating furnace |
Room temperature ～ 800 ℃ |
|
K-type thermocouple |
2 pcs (matched with cylindrical furnace) |
|
Temperature control accuracy |
±(0.3+0.005t) ℃Note: t refers to absolute value of test temperature |
|
Spindle taper of tester |
1:7 |
|
Maximum clearance between spindle and lower auxiliary disc |
＞75 mm |
|
Spindle Control Modes |
|
|
Manual control |
/ |
|
Time control |
/ |
|
Speed (cycle) control |
/ |
|
Friction torque control |
/ |
|
Microcomputer control |
/ |
|
Time display & control range |
1 s ～ 999 h |
|
Speed (cycle) display & control range |
(1～99) × 10³ |
|
Maximum output torque of main drive motor |
15 N·m |
|
Vacuum degree of high-temperature furnace |
500 Pa |
|
Overall dimension (L×W×H) |
1030×710×1910 mm (customizable) |
|
Net weight of tester |
1800 kg |
Tester Overview
The tester consists of the following components:
1.Servo Loading System (controlled by servo valve)
2.Cooling System (custom-made with high-quality stainless steel plates)
3.Vacuum Holding & Control System
4.High-Temperature Vacuum Furnace System
5.Friction Force Measuring System
6.Test Force Measuring System
7.Spindle Servo Rotation Control System (servo motor & servo driver)
8.High-Temperature Resistant Spindle (made of heat-resistant material)
9.High-Voltage Electrical Control Cabinet
10.Microcomputer Control System
11.Software (lifetime free upgrade)
