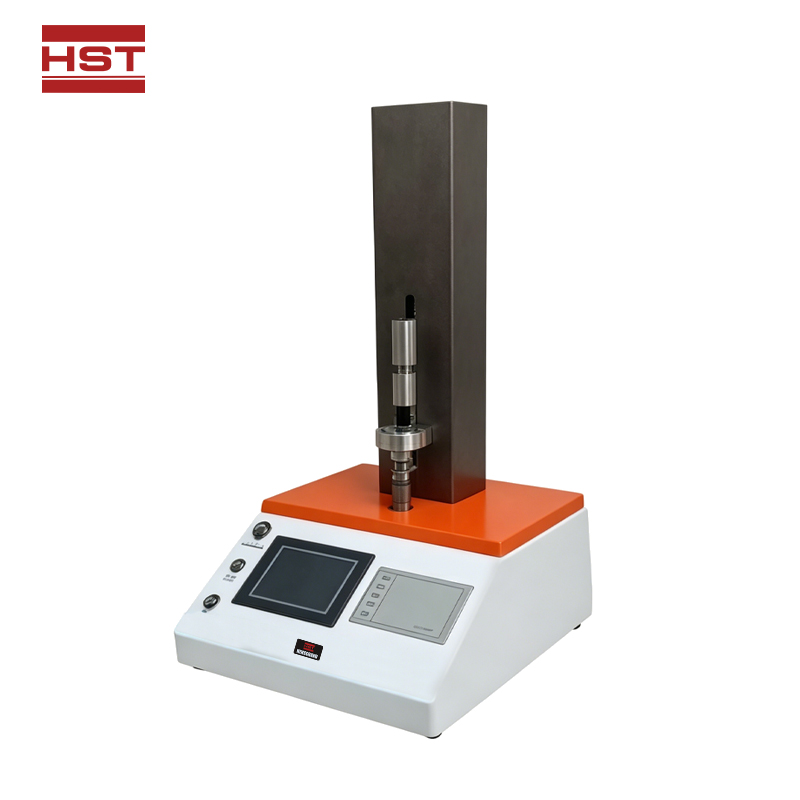

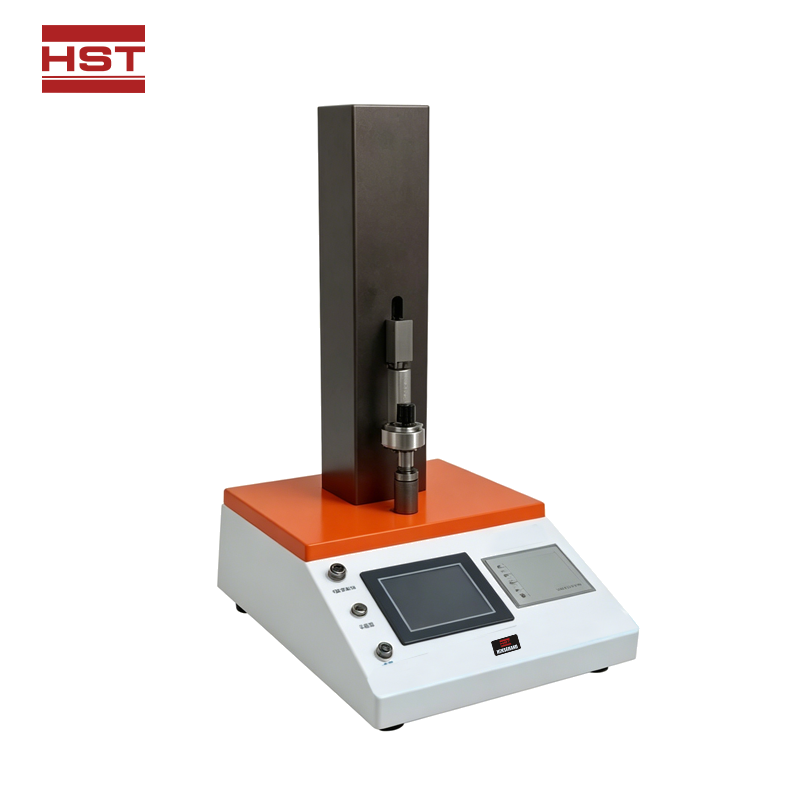

Instrument Overview

Instrument Introduction: Used for testing the coefficient of friction of various tubular materials.

Technical Parameters:

1. Measurement Range: 0-5N

2. Resolution: 0.001N

3. Accuracy: ±0.01N

4. Test Method: Vertical tensile friction

5. Control Method: Touch screen

6. Speed: 1-500mm/min, arbitrarily settable

7. Error: ±0.1 mm/s

8. Friction Standard Sheet: Silicone sheet

9. Bearing Method: Electric bearing

10. Bearing Force Control Method: Force sensor

11. Bearing Force Range: 10N

12. Bearing Force Control Accuracy: 0.01N

13. Control Method: Target setting

14. Water Tank Dimensions: 200mm x 150mm x 200mm (L x W x H)

15. Water Tank Material: Nylon

16. Water Filling/Draining Method: Inlet/Outlet

17. Power Supply: AC 220V±22V, 50Hz Optional Items:

 Computer control software

Cyclic testing mode (number of tests can be set from 1 to 30)

Cyclic testing mode: Closed-loop control
