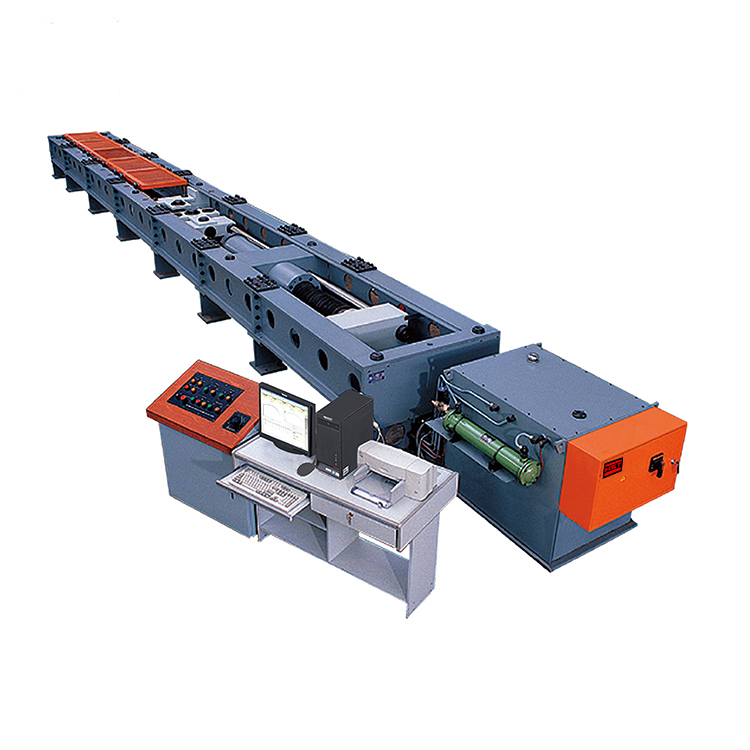

HST-W1000(16m) 1000KN Computer Control Horizontal Tensile Testing Machine For Insulators
Application:
It is application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: Insulators, power fittings, ground wires, overhead insulated wires, power cable，wire rope, ACSR/AW JOREE, chain, shackle ,cable, lifting belt, safety rope tensile test, lifting belt,power fittings etc tensile test.
The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement. Smooth loading, accurate measurement, rapid control response, can achieve load control and displacement (speed) control, a variety of curve form. Can choose (superposition or a single display), can easily and accurately achieve the load, displacement and other digital calibration and verification, with full load protection and position protection, test data can be accessed arbitrarily and can re-analyze data and curves, including local amplification and data re-editing, test methods can be programmed and stored or read, and print out the test reports and curves.
Parameters:
|
Model |
HST-W1000 |
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing
|
|
Max. Load |
1000kN |
|
Load accuracy |
±0.5%; class 0.5 (accordance ASTM E4,ISO 7500-1) |
|
Displacement resolution |
0.01mm |
|
Max tensile space |
16m (exclude piston stroke) |
|
Cylinder piston stroke |
800mm |
|
Displacement measurement resolution |
0.01mm |
|
Testing speed |
0.01~300mm/min adjustable
|
|
Tensile Grip |
Insulator special tensile grips |
|
Power supply |
380V / 3 phases /60 Hz. |
