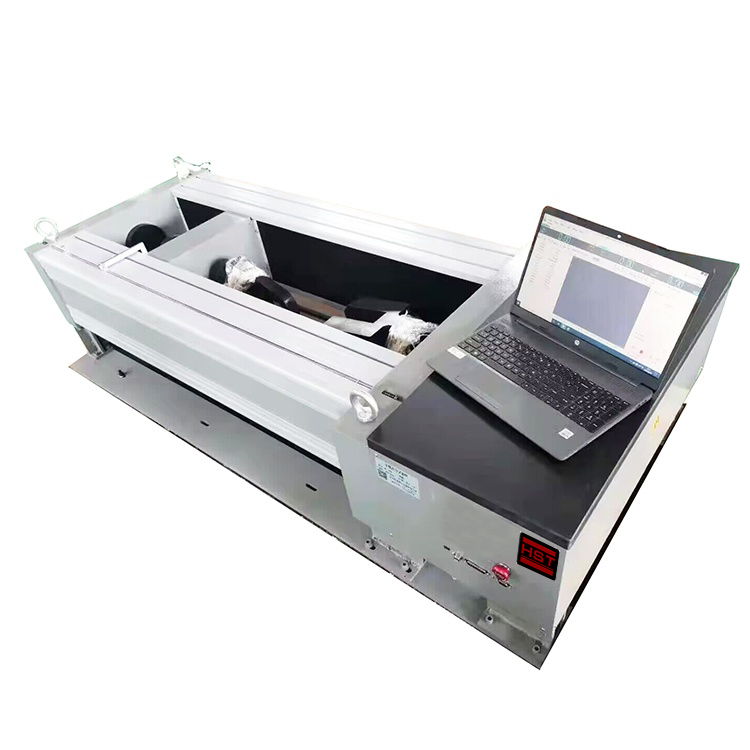

WDE-W200 Computer Control Electronic Horizontal InsulatorsTensile Testing Machine
Application:
It is application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: Insulators, power fittings, ground wires, overhead insulated wires,，wire rope, ACSR/AW JOREE, chain, shackle ,cable, lifting belt, safety rope tensile test, lifting belt,power fittings etc tensile test.
Parameters:
|
Model |
WDE-W200 |
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing
|
|
Max. Load |
200kN |
|
Load accuracy |
±0.5%; class 0.5 (accordance ASTM E4,ISO 7500-1) |
|
Load range |
0.4%～100%F·S
|
|
Load resolution |
1/500000 of the full scale |
|
Deformation measuring range |
1%～100%F•S |
|
Displacement rate adjustment range
|
0.005～300mm/min |
|
Max tensile space |
1.8 m |
|
Testing speed |
0.01~300mm/min adjustable
|
|
Tensile Grip |
insulators special tensile grips |
