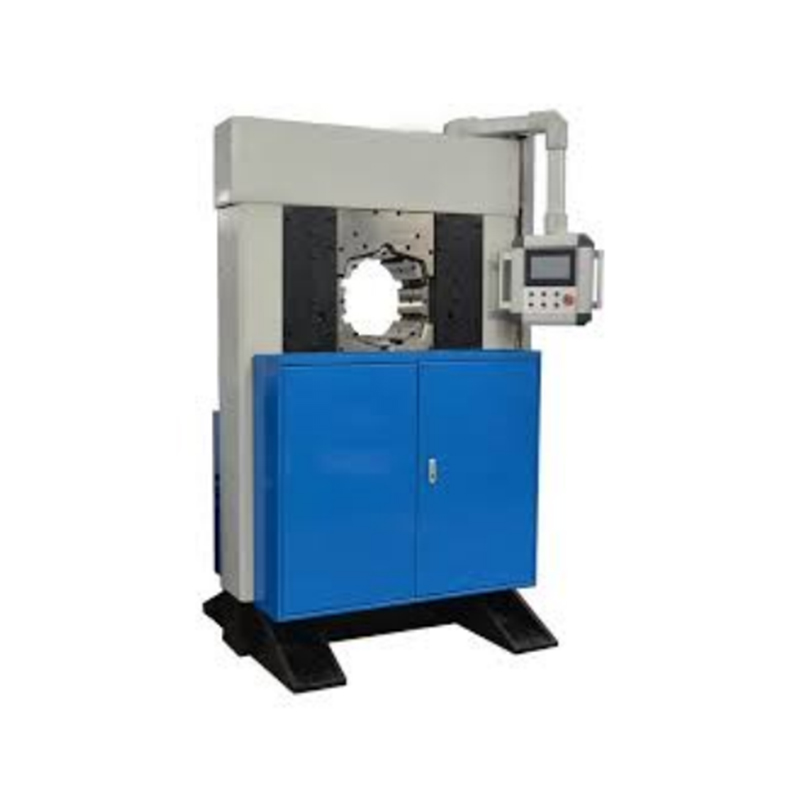

Crimping Machine for Composite Insulator Production
The crimping machine is applied in the production line of high voltage composite insulator (polymer insulator) to crimping metallic end fittings to FRP of the insulator. Model HST-CPT165 is available
Standards:
Request A Quote Files Download
HST-CPT165 Crimping Machine for Composite Insulator Production
Application
The crimping machine is applied in the production line of high voltage composite insulator (polymer insulator) to crimping metallic end fittings to FRP of the insulator. Model 165 is available for an insulator with voltage up to 800KV.
Specification
|
Model |
HST-CPT165 |
|
Max crimping diameter |
250mm |
|
Diameter difference between min opening and max opening |
150mm |
|
Crimping range |
Diameter 6.8mm to 250mm |
|
Length of min crimping module |
116mm |
|
Pressing force |
6000kN |
|
Control mode |
PLC |
|
Power consumption |
7.5kW |
|
Power supply |
380V , 50Hz |
|
Weight of crimping device |
About 6000 kgs |
