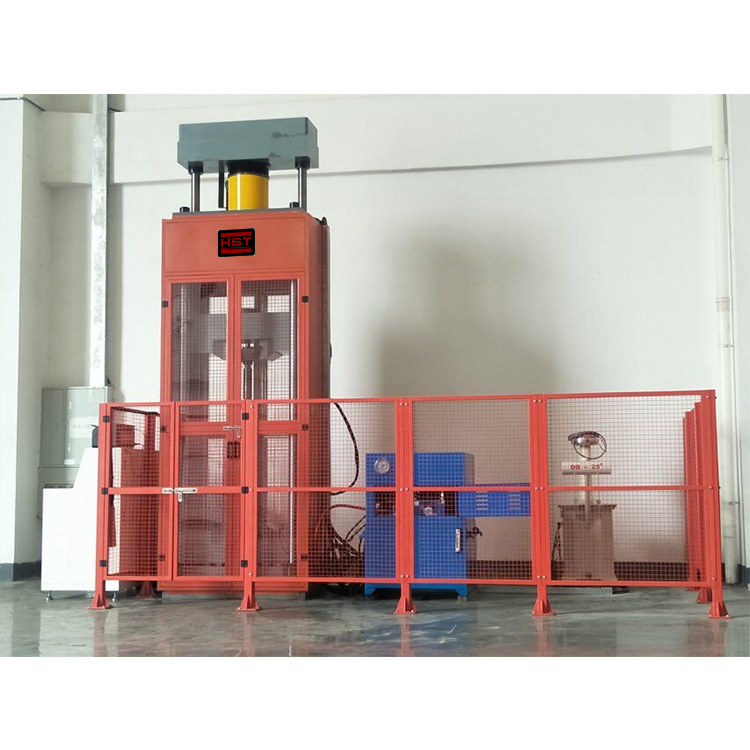

HST-W600K4L Vertical Four-Station Thermo-Mechanical Tensile Testing Machine
Introduction:
Our company adopts an oil cylinder straight-pull structure: equipped with a special omposite mandrel calibration tool (rated tensile strength 550kN), which is light in weight and easy to hang. The vertical type does not require climbing, and the horizontal type heat engine can complete the calibration work without a huge workload.
Parameters:
|
Model |
HST-W600K4L |
|
Load number of workstations |
4 (number of stations can be customized such as single station, double station, three station, or four station) |
|
Tensile test force of single cylinder |
600kN |
|
Force range and accuracy of each set of loading device |
3-600kN, accuracy better than 0.5% |
|
loading speed |
No-load 0-120mm/min steplessly adjustable, automatic test control |
|
Environmental chamber test space (length*width*height) |
1700mm*800mm*3000mm |
|
Displacement (deformation) range and measurement accuracy |
300mm, accuracy better than ±0.01mm |
|
Control mode |
Constant test force fully automatic control |
|
Test force holding point and holding time |
Meet the pressure holding requirements of more than 200 hours |
