Overview

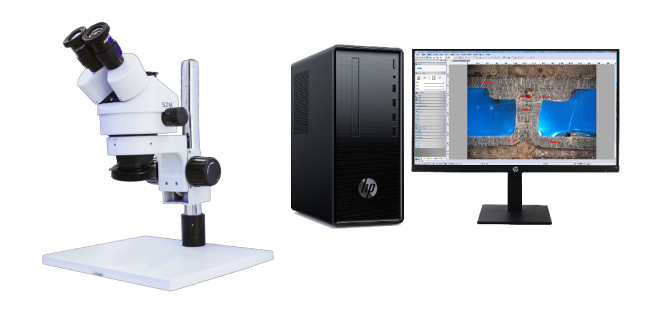

The computerized weld penetration Microscope consists of an optical microscope and professional weld penetration software. It offers clear, wide imaging with a long working distance, enabling continuous magnification of the same object. It can photograph, edit, measure, save, and print the weld penetration of various welds (butt joints, fillet joints, lap joints, T-joints, and other special-shaped joints). It also allows for visualization of the shape and size of the heat-affected and non-heat-affected zones (HAZs), as well as detection of internal and quality defects in welds.

FHF2025 weld penetration measurement software is a weld penetration measurement software developed by our company specifically for the quality inspection of structural steel and stainless steel seam welds, as well as aluminum alloy welds. It is suitable for automotive and parts manufacturers, the pressure vessel industry, structural welding process testing, aerospace welding quality assessment, and all other weld types. It measures weld penetration, weld width, weld reinforcement, and pore diameter. It also enables macroscopic observation of weld defects such as pores, slag inclusions, cracks, incomplete penetration, lack of fusion, and undercuts. The software allows you to customize measurement items, create company-specific measurement templates, and customize welding quality screening parameters to automatically generate OK/NG judgments. Data can then be exported to generate test reports. The software also allows for image processing, such as text overlays and ruler lines.

The software supports major operating systems, including Windows 10 and Windows 11. It effectively improves the efficiency of quality inspectors and helps companies create standardized reports and monitor overall weld quality trends. The software is easy to use and master.
