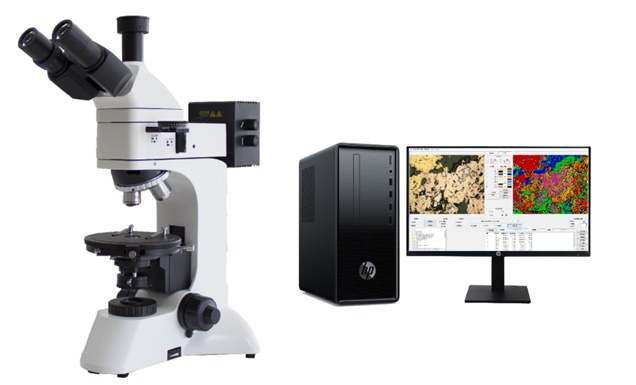

HST PL7 Reflective polarizing microscope Product Details Manual
HST PL7 polarizing microscope host can be equipped with high-definition camera, image measurement software, and professional lithology polarizing software to achieve functions such as photography, mea
Standards:
Request A Quote Files DownloadHST PL7 polarizing Microscope host can be equipped with high-definition camera, image measurement software, and professional lithology polarizing software to achieve functions such as photography, measurement, and material analysis. Widely used in research and testing in fields such as geology, chemical engineering, medicine, and pharmaceuticals, it can also observe the crystal phase of liquid polymer materials, biopolymers, and liquid crystal materials. It is an ideal instrument for research institutions and higher education institutions to conduct research and teaching.
HST PL7 Polarized microscope Technical Parameters Table：
|
parts |
Specifications |
|||
|
optical system |
Infinite chromatic aberration correction optical system |
|||
|
Observation tube |
Three eye observation tube, adjustable single view, tube tilted at 30 °, capable of 100% transparent photography, and can be connected to a camera device. |
|||
|
eyepiece |
Big View WF10X/22mm |
|||
|
objective lense |
PL L5X/0.12 WD26.1 mm |
PL L10X/0.25 WD20.2 mm |
PL L40X/0.60 WD3.98 mm |
PL L60X/0.75 WD2.03 mm |
|
converter |
Four holes (adjustable converter center) |
|||
|
Intermediate connecting tube |
Push in Burgundy mirror |
|||
|
Polarizing mirror group |
Can rotate 360 °, with scale and micro cursor. |
|||
|
Polarizing mirror group |
360 ° polarization direction rotation, with four gears: 0, 90, 180, 270, placed below the aperture stop. |
|||
|
Compensator |
λ , λ/4 and quartz wedge compensator |
|||
|
Coarse and micro focusing mechanism |
Coarse micro coaxial focusing with locking and limiting devices, micro grid value: 2 μ m |
|||
|
Carrier platform |
Rotating stage, 360 ° equally divided scale, with a grid value of 6 ', adjustable center, equipped with a locking device, and a vertical effective stroke of up to 30mm for the worktable. |
|||
|
Upper lighting system |
6V30W halogen lamp, adjustable brightness, polarizer can rotate 360 °, analyzer can rotate 360 °, with scale and micro cursor, built-in field of view and aperture stop. |
|||
|
Lower lighting system |
6V30W halogen lamp with adjustable brightness. |
|||
|
Software package (optional) |
FPG2024 Professional lithofacies polarization software, 12 million Sony chip camera device, 0.5X adaptive lens interface. |
|||
